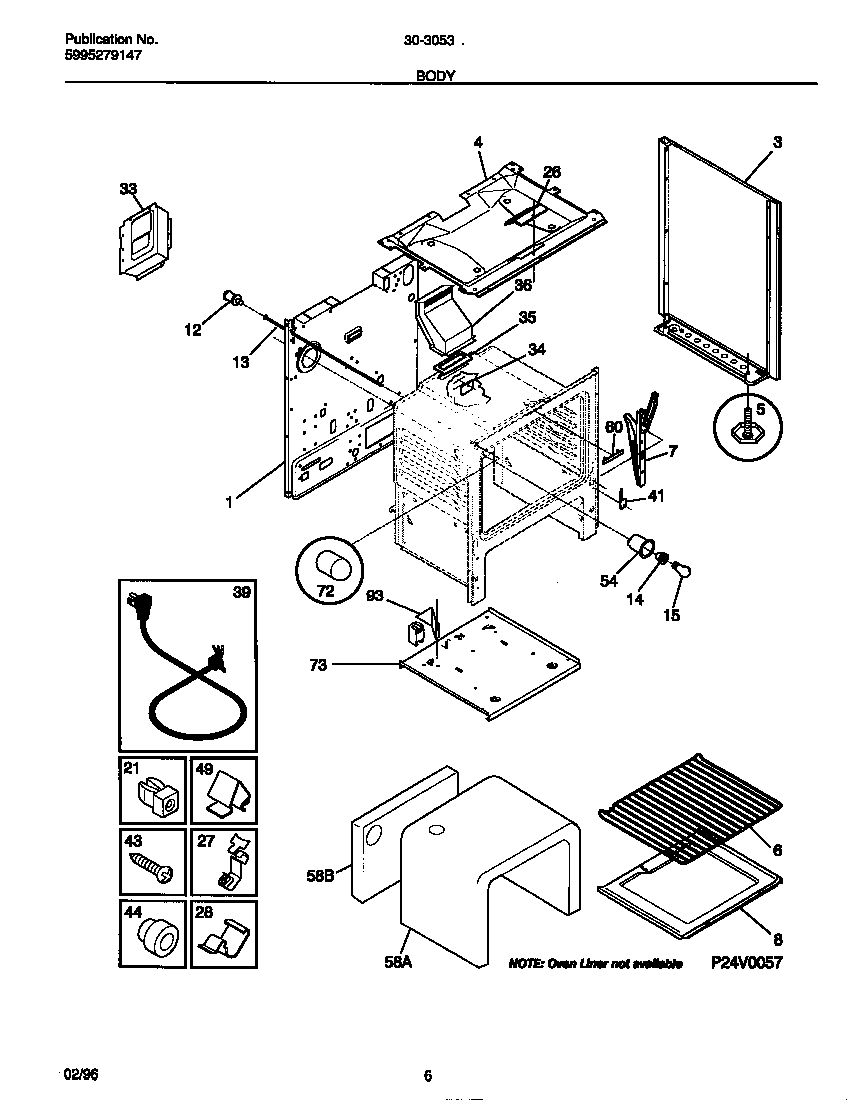

30-3053-23-04 04 – BODY

30-3053-23-04 04 – BODY

Written by

in

30-3053-23-04 04 – BODY

Products

PositionProduct
*74089WCI 5303281584
*74084WCI 08010463
*74090WCI 316001210
*74088WCI 5303280614
*74085Screw,cup pt ,8-18 x 0.375 ,chrome
*74087WCI 316056500
*74086316539800 Frigidaire Oven Retainer
1WCI 316029410
3WCI 316081007
3WCI 316081006
4WCI 316011912
5ASCREW-LEVELING
5BNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7AHinge,oven door ,(2)
7B3203010 Frigidaire Clip
8ABTTM-OVEN
8B316064600 Frigidaire Oven Support
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 3131904
39A5304515659 Frigidaire Oven Power Cord
39BWCI 08067961
41WCI 3131570
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
493205821 Frigidaire Clip
54WCI 3009290
58INSUL – OVEN BACK (NON-ILLUSTRATED)
58INSULATION, OVEN WRAPPER
60COVER-OVEN FRONT
72COVER-LIGHT/SWITCH ROD
73BASE-BROIL
93WCI 316055501
