30-3148-23-01 06 – BURNER, MANIFOLD AND GAS CONTROL

30-3148-23-01 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

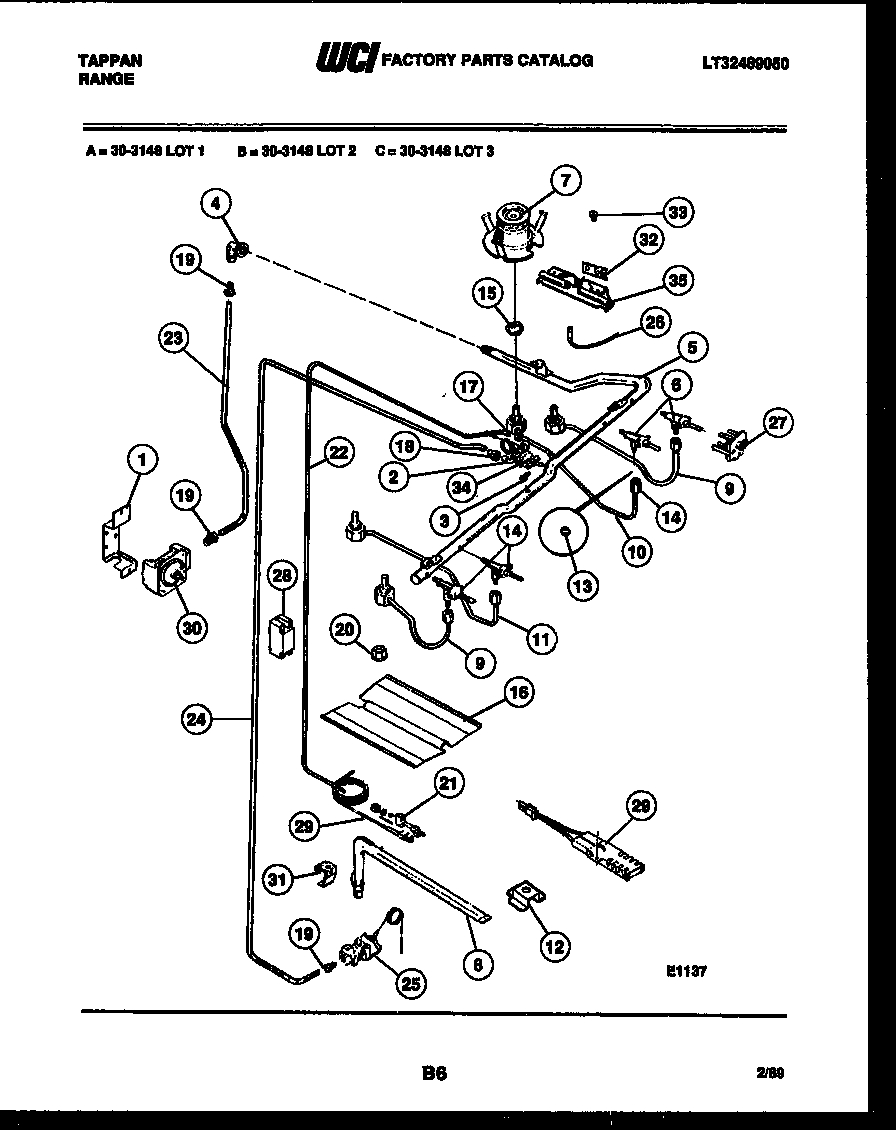

30-3148-23-01 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1BRACKET-REGULAR
2WCI 3018622
3ADAPTER-THERMOSTAT
4ELBOW 1/2 NP TO 9/16-24
5WCI 3018612
6WCI 3017846
7BURNER TOP (4)
8WCI 3131571
9BURNER TUBE-RF & LF
10WCI 079T033H02
11WCI 3011570
13WCI 247T074P01
14NUT COMPRESSN (4)
15NUT, SPECIAL
16WCI 3131327
17WCI 3131404
18WCI 3131403
19FITTING-LOXIT (8)
205303013272 Frigidaire Oven Nut
21PILOT-OVEN
22TUBE-OVN PILOT 3/16
23TUBE-REGUL TEE
24TUBE-ALUMINUM 3/8
25WCI 3131405
26IGNITER-ELEC TOP BURN
27316035200 Frigidaire Ignition Switch
285303200332 Frigidaire Oven Module
29IGNITER-ELECTRODE OVEN
30CONTROL – REGULAR
31WCI 072T821F01
32RETAINER ELECTROS
33WCI 3051420
34WCI 695T220P01
35WCI 136T355W03
