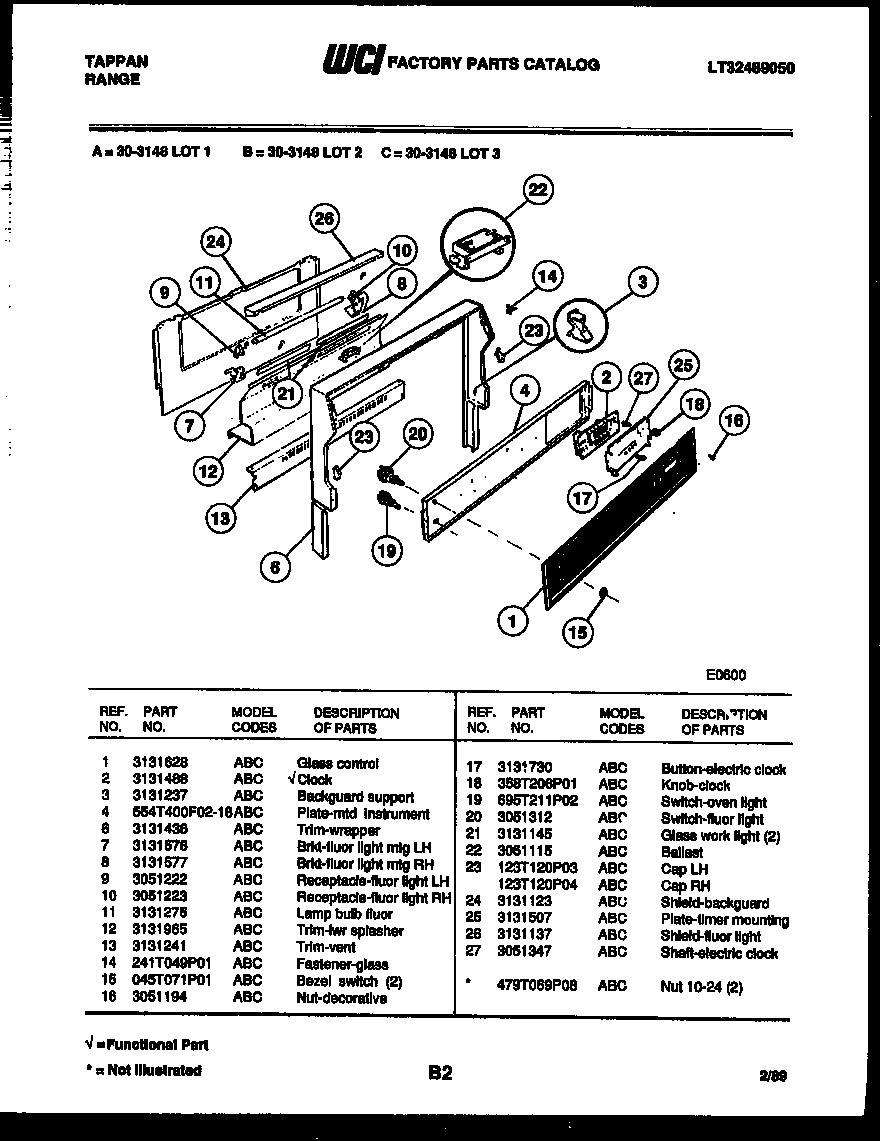

30-3148-23-02 02 – BACKGUARD – Aparts

30-3148-23-02 02 – BACKGUARD

Products

Position	Product
*13941	NUT (10-24) (NON-ILLUSTRATED)
1	WCI 3131628
2	WCI 3131488
3	SUPPORT-BACKGUARD (2)
4	PLATE INSTRUMENT MOUNTING
6	WCI 3131436
7	BRKT-FLUOR LT MTG LH
8	BRKT-FLUOR LT MTG RH
9	RECEPTACLE-FLU LT LH
10	RECEPTACLE-FLU LT RH
11	BULB-FLUOR
12	PANEL, SPLASHER
13	WCI 3131241
14	FSTNR-GLASS(2)
15	WCI 045T071P01
16	NUT - DECOR (2)
17	WCI 3131730
18	WCI 358T206P01
19	SWITCH-OV LT
20	SW.-FLUOR. LT.
21	GLASS-WORK LITE (2)
22	WCI 3051115
23A	WCI 123T120P04
23	WCI 123T120P03
24	SHIELD-BACKGUARD,REAR WALL
25	WCI 3131507
26	SHIELD-FLUOR LT.
27	SHAFT-ELEC. CLK.
