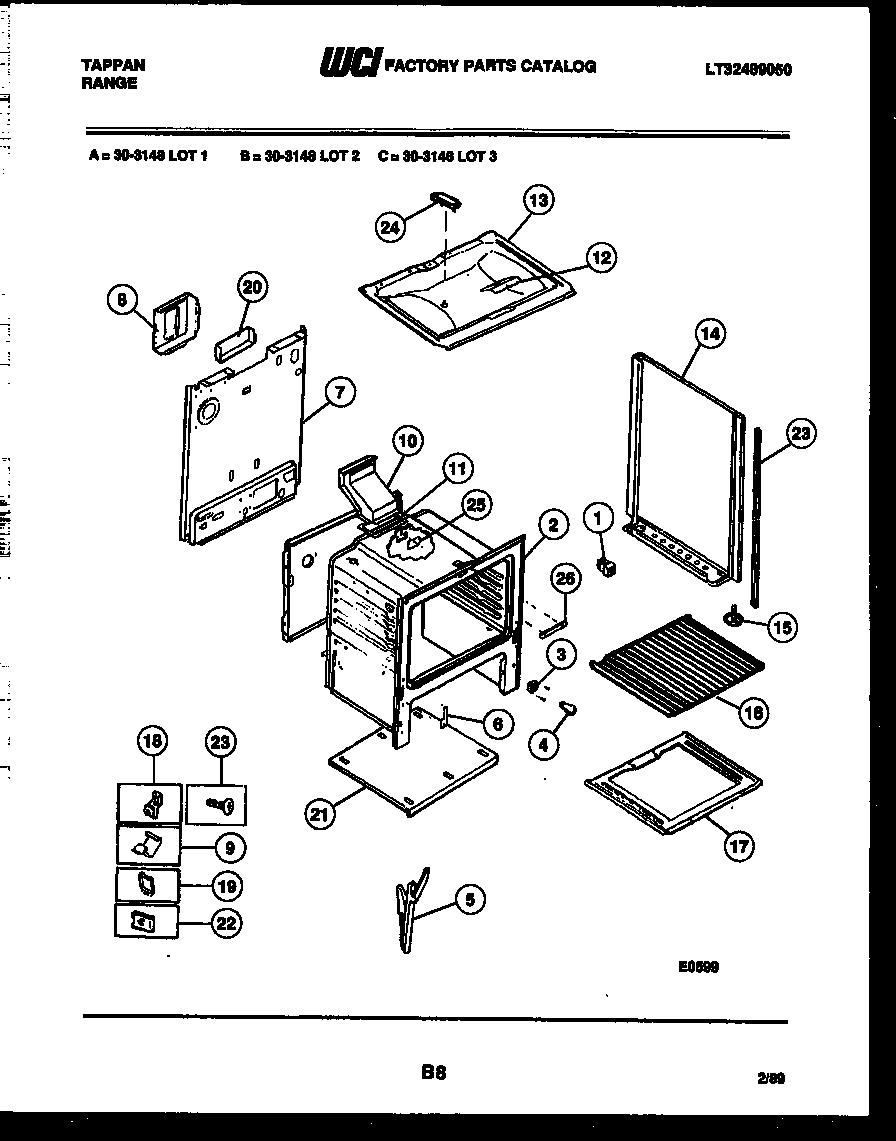

30-3148-66-01 07 – BODY PARTS

30-3148-66-01 07 – BODY PARTS

Written by

in

30-3148-66-01 07 – BODY PARTS

Products

PositionProduct
1WCI 665T188P02
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5CHANL-DR HNG (2)
6WCI 3131570
6A5304534000 Frigidaire Cord
7WCI 3131567
8WCI 655T421F02-18
9CLIP, WIRE
10WCI 3131904
11316542102 Frigidaire Flue Gasket
12WCI 3131101
13WCI 095T030F02-86
14BPNL. B/S (LH WEAT)
14APNL B/S-LH (WHEAT)
14APNL. B/S (RH WEAT)
14APNL B/S-RH (WHEAT)
15WCI 636M004P01
16316067902 Frigidaire Oven Rack
17BWCI 3131246
17AWCI 3131201
17WCI 058T036F02-86
18AFSTNR-POWER CORD (NON-ILLUSTRATED)
185303284616 Frigidaire Range Bulb Clip Thermostat
19316539800 Frigidaire Oven Retainer
20B316064600 Frigidaire Oven Support
20A3131903 Frigidaire Door/Drawer Bumper
20WCI 3131348
21BCOVER-POWER CORD, (NON-ILLUSTRATED)
21APLATE-OV. LT MTG (NON-ILLUSTRATED)
21WCI 3131180
223203010 Frigidaire Clip
23316282700 Frigidaire Oven Screw
24COVER, BURNER BOX
25COVER PLATE (NON-ILLUSTRATED)
26COVER FRNT MAIN (NON-ILLUSTRATED)
