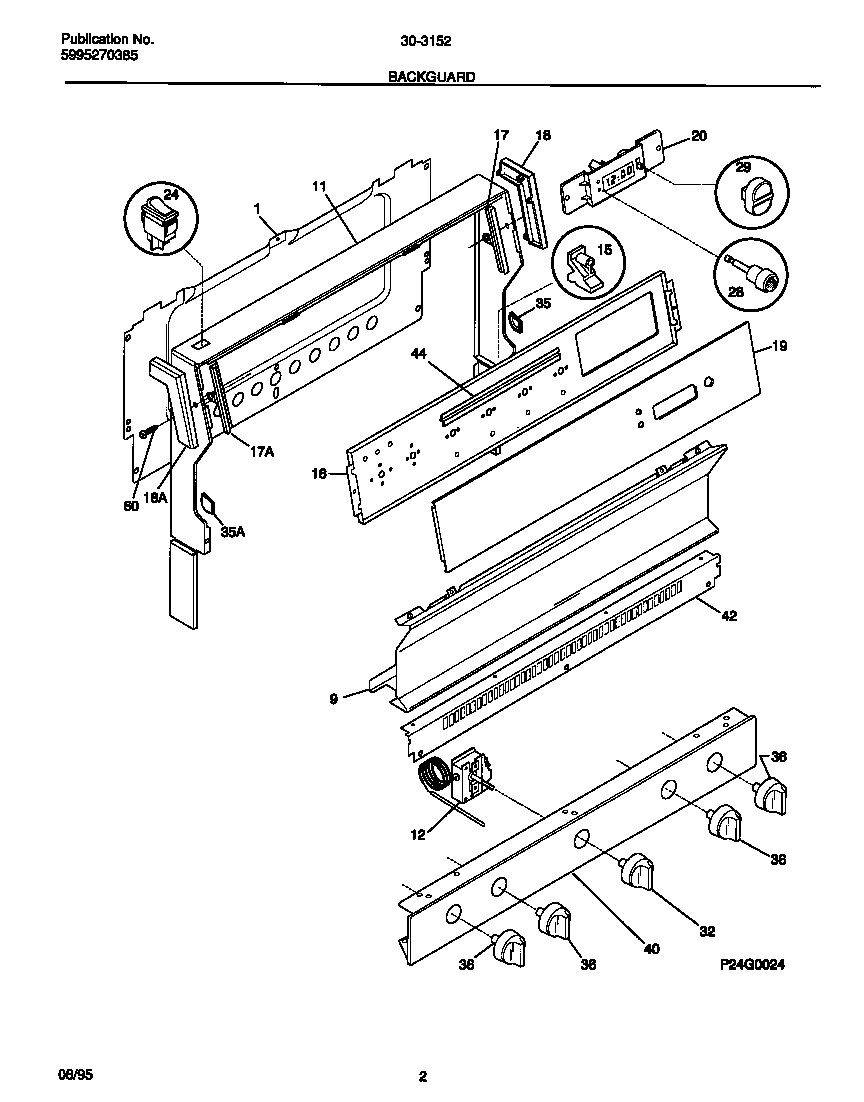

30-3152-00-03 02 – BACKGUARD

Products

Position	Product
*49800	WCI 5303281584
*49801	SCREW-END CAP
1	SHIELD-BACKGUARD,REAR WALL
9	WCI 316043501
11	WCI 3204764
12	316032411 Frigidaire Stove Temperature Control Thermostat
15	SUPPORT-BACKGUARD,(2)
16	WCI 316042601
17A	TRIM-GLASS RETAINER,LH
17	TRIM-GLASS RETAINER,RH
18	WCI 3204747
18A	WCI 3204746
19	WCI 5303274448
20	WCI 5303272309
24	5308015487 Frigidaire Switch-Oven Light
28	BUTTON-CLOCK
29	KNOB-TIMER BUTTON
32	WCI 316022912
35	CAP-RH
35A	CAP-LH
36	WCI 316023014
40	WCI 316009230
42	WCI 316084300
60	316021105 Frigidaire Oven Screw
