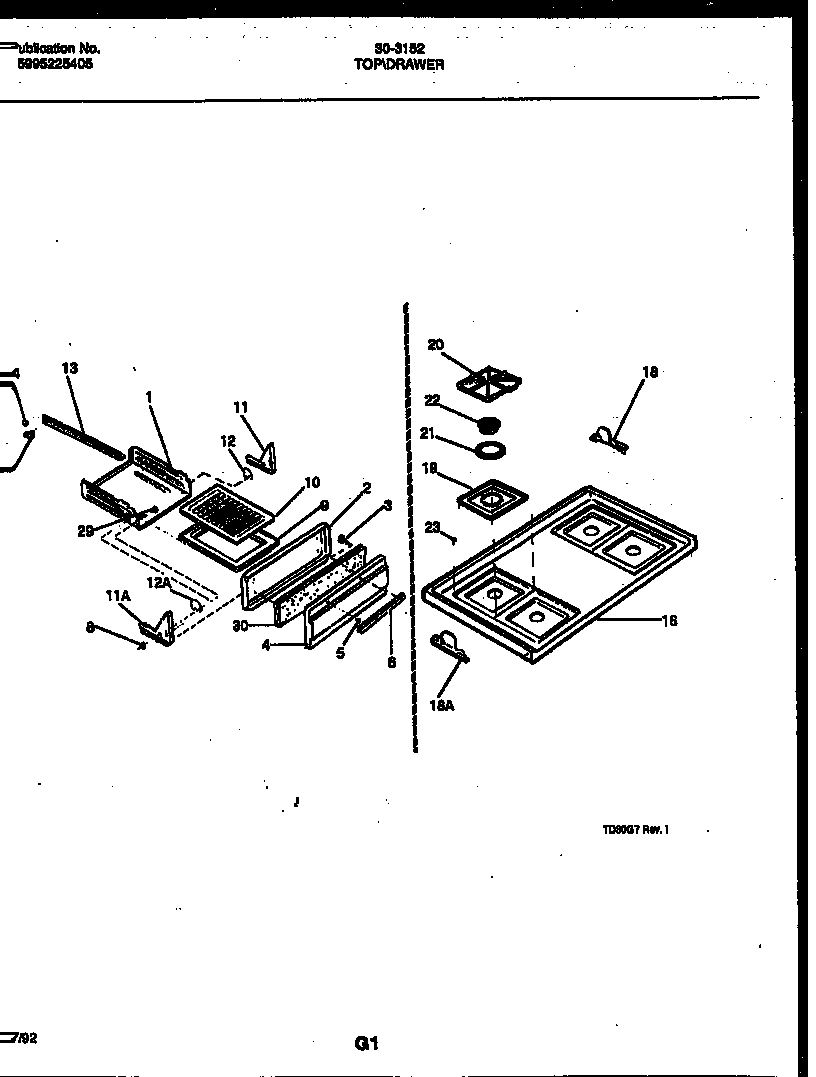

30-3152-23-01 05 – COOKTOP AND BROILER DRAWER PARTSadmin2025-04-26T08:40:50+00:0030-3152-23-01 05 – COOKTOP AND BROILER DRAWER PARTS
Products
| Position | Product |
|---|
| 1 | DRAWER-BROILER |
| 2 | WCI 3202803 |
| 3 | SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2 |
| 4A | SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED) |
| 4 | PANEL - BROILER ALMD |
| 5 | FSTNR, SPACER (2) |
| 6 | HANDLE |
| 7 | GLIDE-DRAWER, REAR |
| 8 | WCI 3131386 |
| 9 | PAN-BROILER |
| 10 | WCI 5303131356 |
| 11A | WCI 3200673 |
| 11 | WCI 3018860 |
| 12 | SPRING-BROILER, RH |
| 12A | WCI 3018618` |
| 13 | WCI 3131153 |
| 14 | WCI 3206216 |
| 16A | GUSSET-MTG (RH) (NON-ILLUSTRATED) |
| 16B | GUSSET-MTG (LH) (NON-ILLUSTRATED) |
| 16 | WCI 316010402 |
| 18A | BRACKET-HINGE,MAIN TOP LH |
| 18 | BRACKET-HINGE,MAIN TOP RH |
| 19 | WCI 316011400 |
| 20 | WCI 5303269632 |
| 21 | WCI 316035101 |
| 22 | 316010901 Frigidaire Burner Cap P1 |
| 23 | 316069301 Frigidaire Oven Burner Mounting Primary Screw |
| 29 | PIN, HINGE (2) |
| 30 | INSULATION, BROILER DRAWER |
