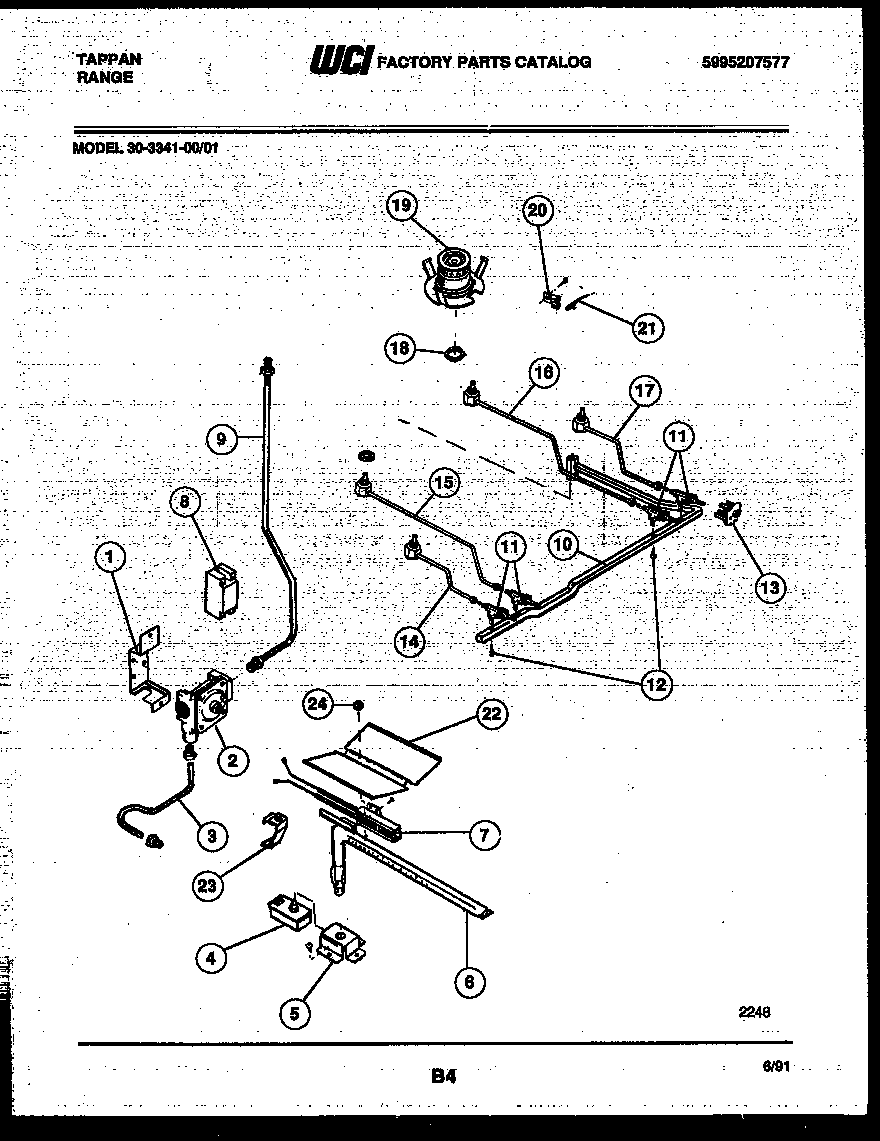

30-3341-00-01 06 – BURNER, MANIFOLD AND GAS CONTROL

30-3341-00-01 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

30-3341-00-01 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1316091600 Frigidaire Oven Bracket
25303935125 Frigidaire Pressure Regulator
3316065006 Frigidaire Tube P1
43203459 Frigidaire Oven Range Dual Gas Safety Valve
5BRKT.-VALVE
6WCI 3131439
75303935066 Frigidaire Oven Flat Igniter 17" Leads
85303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
9TUBE-ALUM 3/8 REG/MANIFOLD PIPE
10WCI 5303271375
11VALVE TOP-3 POS
12316048200 Frigidaire Oven Screw
13316035200 Frigidaire Ignition Switch
14TUBE-BURNER, LF
15TUBE-BURNER, LR
16TUBE-BURNER, RR
17TUBE-BURNER, RF
18NUT, SPECIAL
19BURNER TOP (4)
20WCI 3018617
21IGNITER-TOP BURNER (4)
22WCI 3203265
23WCI 3018603
245303013272 Frigidaire Oven Nut
