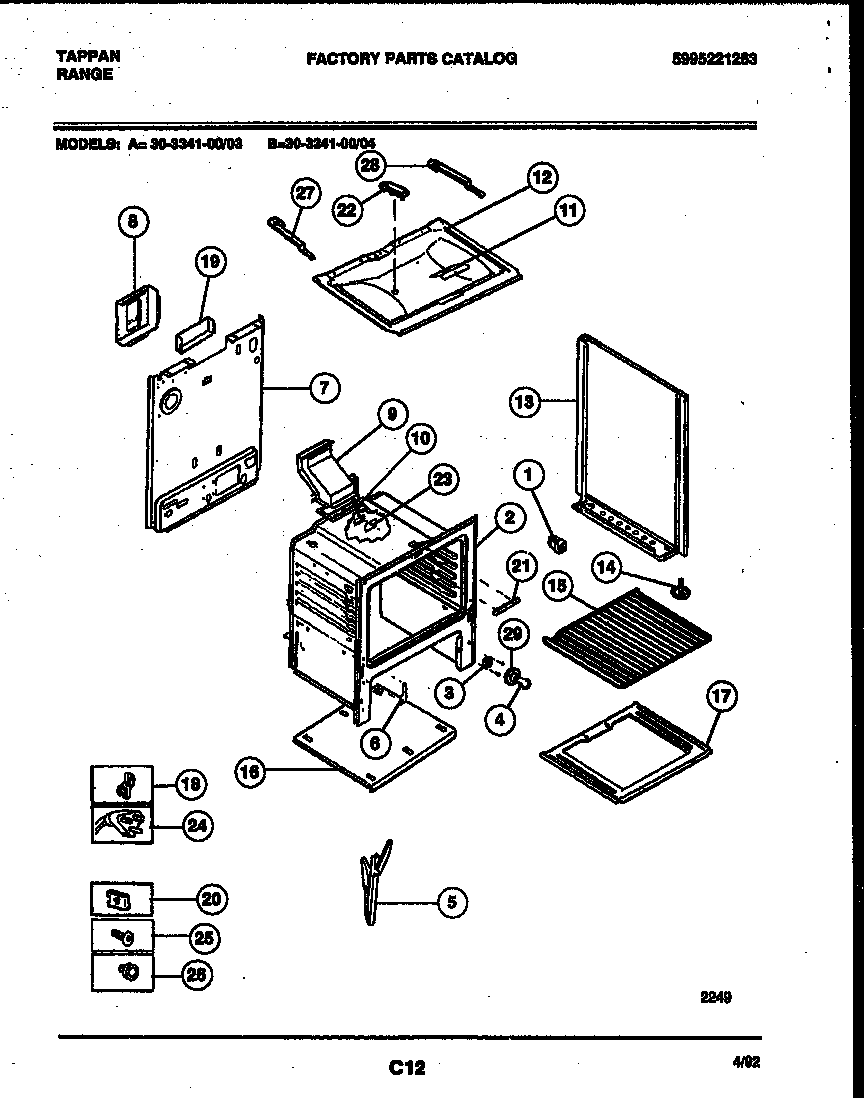

30-3341-00-03 07 – BODY PARTS

Products

PositionProduct
*68604WIRING DIAGRAM-(NOT FOR PURCHASE.) (NON-ILLUSTRATED)
*68603WCI 08067961
*68603316064600 Frigidaire Oven Support
*68604ANTI-TIP KIT (NOT ILLUSTRATED)
*68603COVER-POWER CORD, (NON-ILLUSTRATED)
*68603316539800 Frigidaire Oven Retainer
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5Hinge,oven door ,(2)
6WCI 3131570
7WCI 3203082
8WCI 3131660
9WCI 5303273108
10316542102 Frigidaire Flue Gasket
11WCI 08067757
12WCI 3011597
13PNL-B/S-LH-WHITE
13PNL-B/S-RH-WHITE
14SCREW-LEVELING
14AWCI 08010570
15316067902 Frigidaire Oven Rack
16WCI 5303270160
17AINSULATION, OVEN WRAPPER
17BINSUL – OVEN BACK (NON-ILLUSTRATED)
17BTTM-OVEN
185303284616 Frigidaire Range Bulb Clip Thermostat
19WCI 5303273110
203203010 Frigidaire Clip
21COVER-OVEN FRONT
22WCI 3015371
23COVER-IGNITOR
245304515659 Frigidaire Oven Power Cord
25316282700 Frigidaire Oven Screw
263131903 Frigidaire Door/Drawer Bumper
27BRACKET-HINGE, MAIN TOP, LH
28BRACKET-HINGE, MAIN TOP RH
29WCI 5303271606
