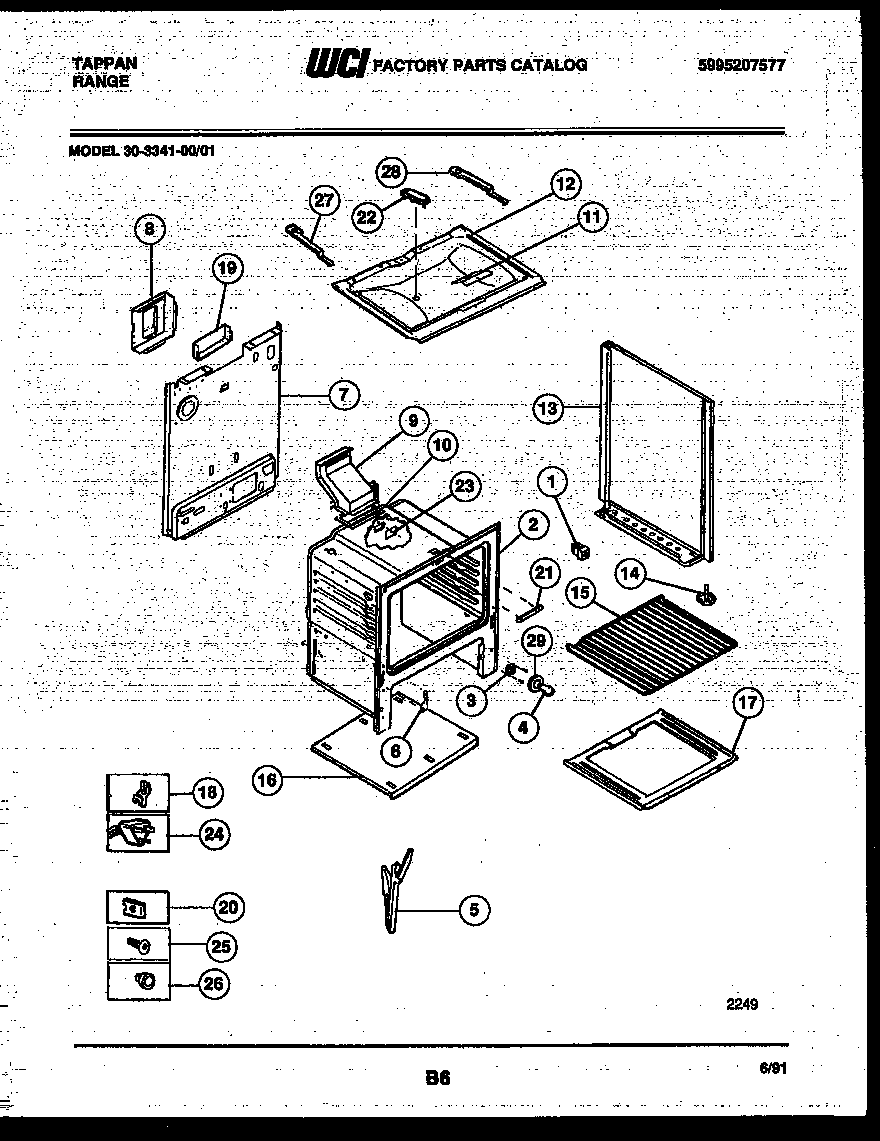

30-3341-23-01 07 – BODY PARTS

Products

Position	Product
*53043	5303935066 Frigidaire Oven Flat Igniter 17" Leads
*53043	ANTI-TIP KIT (NOT ILLUSTRATED)
*53043	COVER-POWER CORD, (NON-ILLUSTRATED)
*53043	316539800 Frigidaire Oven Retainer
*53043	WIRING DIAGRAM-(NOT FOR PURCHASE.) (NON-ILLUSTRATED)
*53043	316064600 Frigidaire Oven Support
1	SPACER-BODYSIDE, (8)
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	CHAN-DOOR HINGE (2)
6	WCI 3131570
7	WCI 3203082
8	WCI 3131660
9	WCI 5303273108
10	316542102 Frigidaire Flue Gasket
11	WCI 08067757
12	WCI 3011597
13A	WCI 5303269545
13	WCI 5303269543
14A	WCI 08010570
14	SCREW-LEVELING
15	316067902 Frigidaire Oven Rack
16	WCI 5303270160
17A	INSULATION, OVEN WRAPPER
17B	INSUL – OVEN BACK (NON-ILLUSTRATED)
17	BTTM-OVEN
18	5303284616 Frigidaire Range Bulb Clip Thermostat
19	WCI 5303273110
20	3203010 Frigidaire Clip
21	COVER-OVEN FRONT
22	WCI 3015371
23	COVER-IGNITOR
24	5304515659 Frigidaire Oven Power Cord
25	316282700 Frigidaire Oven Screw
26	3131903 Frigidaire Door/Drawer Bumper
27	WCI 5303272842
28	WCI 5303272843
29	WCI 5303271606
