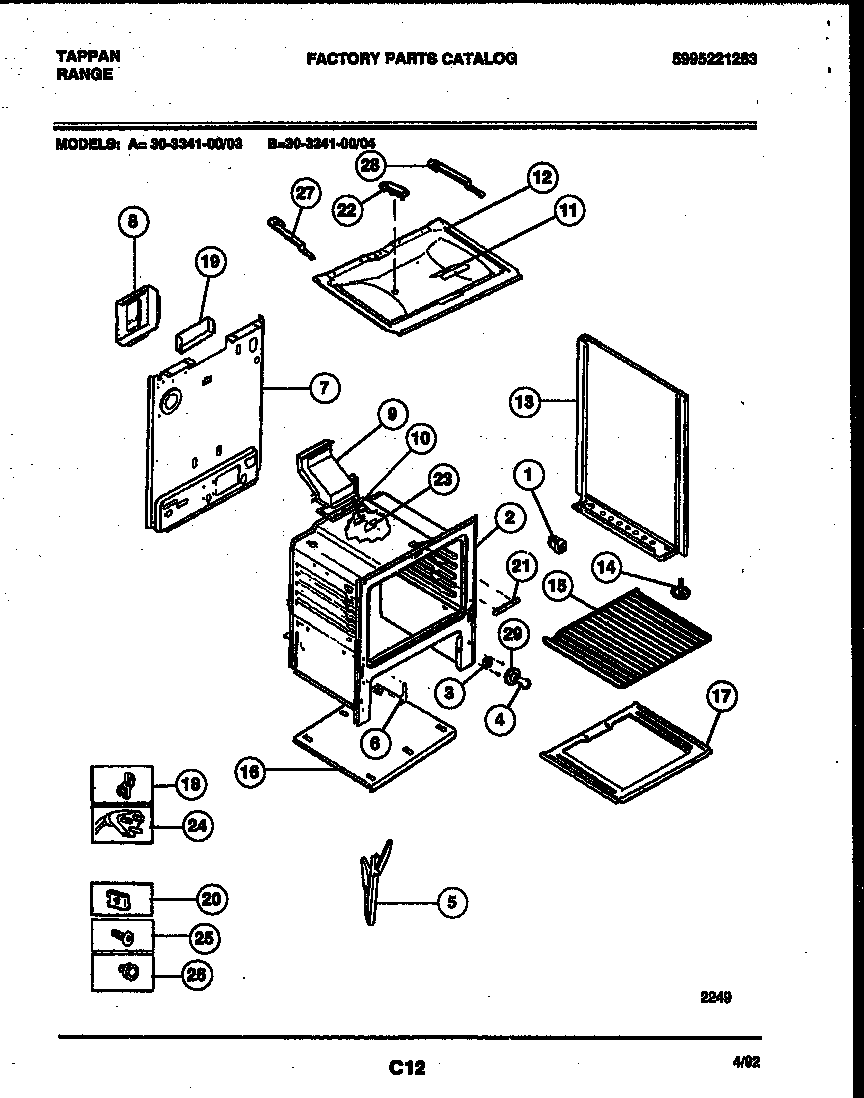

30-3341-23-03 07 – BODY PARTS

Products

PositionProduct
*68604WIRING DIAGRAM-(NOT FOR PURCHASE.) (NON-ILLUSTRATED)
*68603COVER-POWER CORD, (NON-ILLUSTRATED)
*68604ANTI-TIP KIT (NOT ILLUSTRATED)
*68603316064600 Frigidaire Oven Support
*68603WCI 08067961
*68603316539800 Frigidaire Oven Retainer
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5Hinge,oven door ,(2)
6WCI 3131570
7WCI 3203082
8WCI 3131660
9WCI 5303273108
10316542102 Frigidaire Flue Gasket
11WCI 08067757
12WCI 3011597
13WCI 5303269543
13WCI 5303269545
14AWCI 08010570
14SCREW-LEVELING
15316067902 Frigidaire Oven Rack
16WCI 5303270160
17BTTM-OVEN
17AINSULATION, OVEN WRAPPER
17BINSUL – OVEN BACK (NON-ILLUSTRATED)
185303284616 Frigidaire Range Bulb Clip Thermostat
19WCI 5303273110
203203010 Frigidaire Clip
21COVER-OVEN FRONT
22WCI 3015371
23COVER-IGNITOR
245304515659 Frigidaire Oven Power Cord
25316282700 Frigidaire Oven Screw
263131903 Frigidaire Door/Drawer Bumper
27BRACKET-HINGE, MAIN TOP, LH
28BRACKET-HINGE, MAIN TOP RH
29WCI 5303271606
