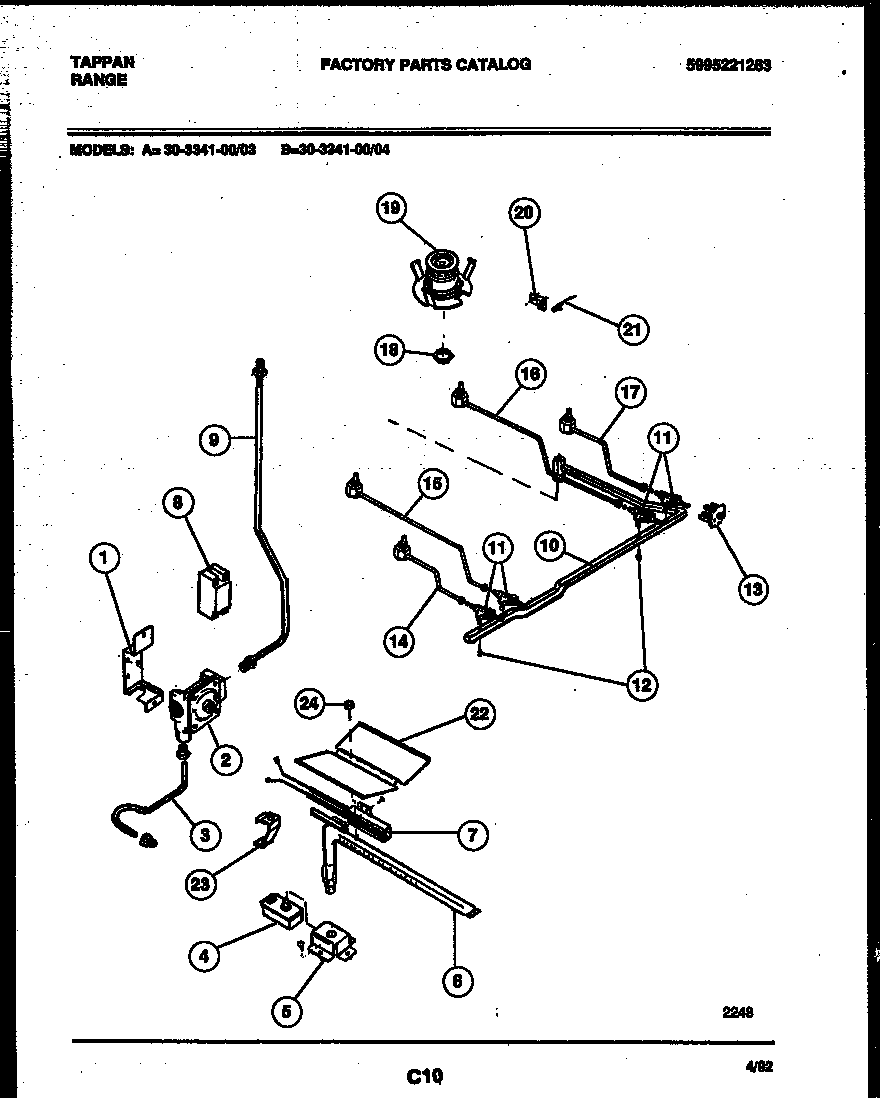

30-3341-23-04 06 – BURNER PARTS

30-3341-23-04 06 – BURNER PARTS

Written by

in

30-3341-23-04 06 – BURNER PARTS

Products

PositionProduct
1316091600 Frigidaire Oven Bracket
25303935125 Frigidaire Pressure Regulator
3316065006 Frigidaire Tube P1
43203459 Frigidaire Oven Range Dual Gas Safety Valve
5BRKT.-VALVE
6WCI 3131439
75303935066 Frigidaire Oven Flat Igniter 17" Leads
85303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
9TUBE-ALUM 3/8 REG/MANIFOLD PIPE
10WCI 5303271375
11VALVE-TOP BURNER, 3 POSITION, (4), W/SCREW
12316048200 Frigidaire Oven Screw
13SWITCH-IGNITER, (4)
14WCI 5303283666
15WCI 5303283668
16WCI 5303283667
17WCI 5303283665
18NUT, SPECIAL
19BURNER TOP (4)
20WCI 3018617
21ELECTRODE
22WCI 3203265
23WCI 3018603
245303013272 Frigidaire Oven Nut
