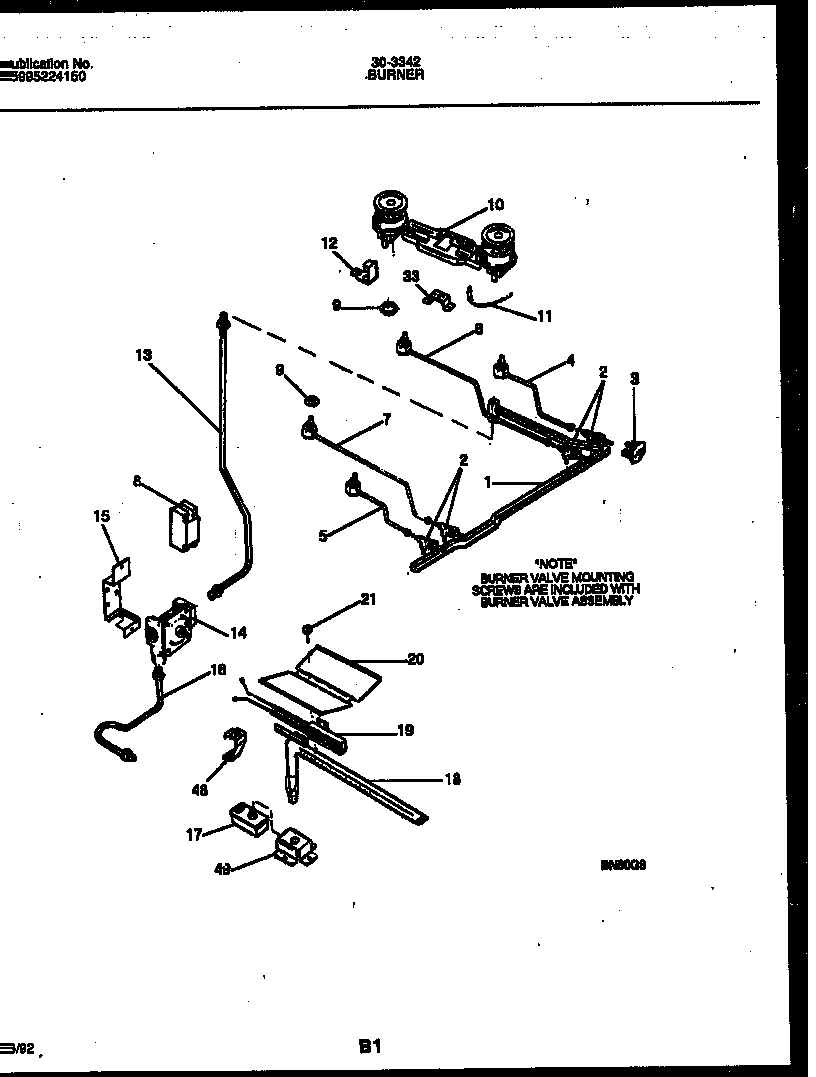

30-3342-00-01 03 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
1	WCI 5303271375
2	VALVE-TOP BURNER, 3 POSITION, (4), W/SCREW
3	SWITCH-IGNITER, (4)
4	WCI 5303283665
5	WCI 5303283666
6	WCI 5303283667
7	WCI 5303283668
8	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
9	NUT, SPECIAL
10	BURNER-TOP-DOUBLE
11	IGNITER-TOP BURNER, BASE, (2)
12	3016993 Frigidaire Oven Retainer
13	TUBE-ALUM 3/8 REG/MANIFOLD PIPE
14	5303935125 Frigidaire Pressure Regulator
15	316091600 Frigidaire Oven Bracket
16	316065006 Frigidaire Tube P1
17	3203459 Frigidaire Oven Range Dual Gas Safety Valve
18	WCI 3131439
19	5303935066 Frigidaire Oven Flat Igniter 17" Leads
20	WCI 3203265
21	5303013272 Frigidaire Oven Nut
33	BRACKET BURNER MTG
35	316048200 Frigidaire Oven Screw
48	WCI 3018603
49	BRKT.-VALVE
