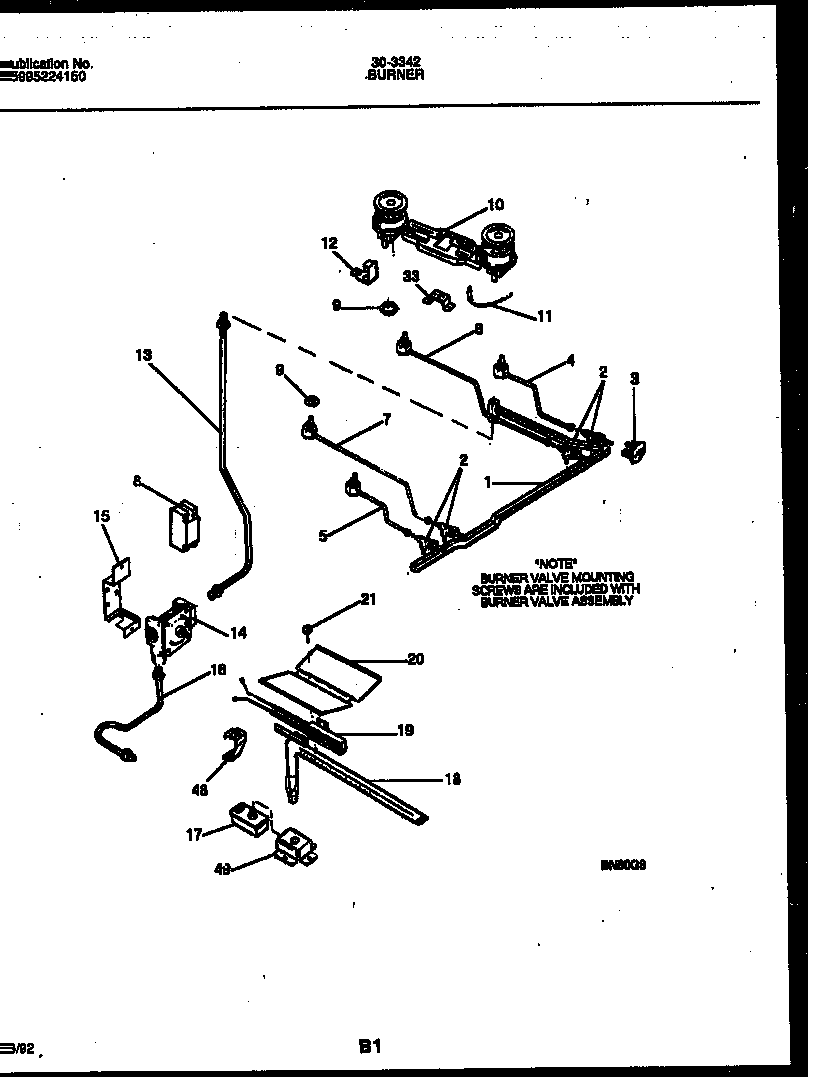

30-3342-23-01 03 – BURNER, MANIFOLD AND GAS CONTROL

30-3342-23-01 03 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

30-3342-23-01 03 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 5303271375
2VALVE-TOP BURNER, 3 POSITION, (4), W/SCREW
3SWITCH-IGNITER, (4)
4WCI 5303283665
5WCI 5303283666
6WCI 5303283667
7WCI 5303283668
85303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
9NUT, SPECIAL
10BURNER-TOP-DOUBLE
11IGNITER-TOP BURNER, BASE, (2)
123016993 Frigidaire Oven Retainer
13TUBE-ALUM 3/8 REG/MANIFOLD PIPE
145303935125 Frigidaire Pressure Regulator
15316091600 Frigidaire Oven Bracket
16316065006 Frigidaire Tube P1
173203459 Frigidaire Oven Range Dual Gas Safety Valve
18WCI 3131439
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20WCI 3203265
215303013272 Frigidaire Oven Nut
33BRACKET BURNER MTG
35316048200 Frigidaire Oven Screw
48WCI 3018603
49BRKT.-VALVE
