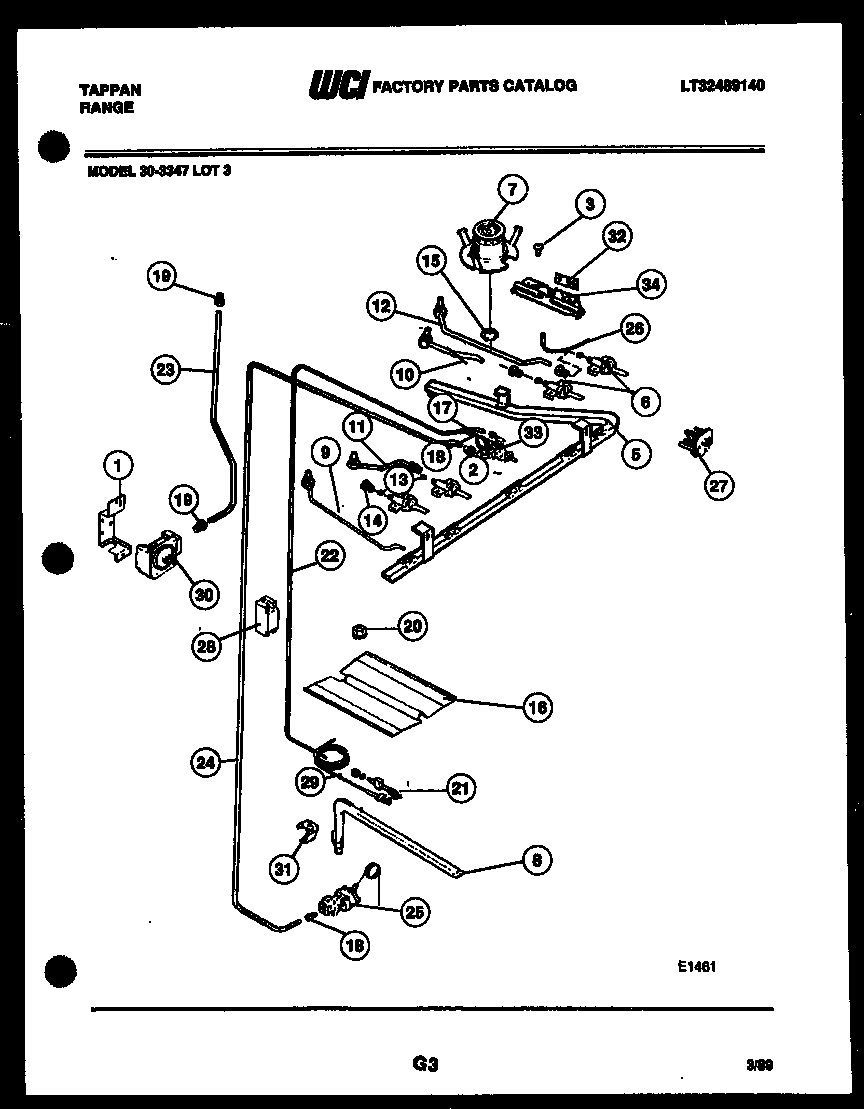

30-3347-00-03 06 – BURNER, MANIFOLD AND GAS CONTROL

30-3347-00-03 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

30-3347-00-03 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1BRACKET-REGULAR
2WCI 3018348
3WCI 3051420
5WCI 3201085
6WCI 3201080
7BURNER TOP (4)
8WCI 3131571
9WCI 3017932
10PANEL-BOTTOM
11WCI 3017935
12WCI 3017933
13WCI 240T074P01
14NUT COMPRESSN (4)
15NUT, SPECIAL
16WCI 3131327
17WCI 3131404
18WCI 3131403
19FITTING-LOXIT (8)
205303013272 Frigidaire Oven Nut
21PILOT-OVEN
22TUBE-OVN PILOT 3/16
23TUBE-REGUL TEE
24TUBE-ALUMINUM 3/8
25WCI 3131405
26IGNITER-ELEC TOP BURN
27WCI 3017931
285303200332 Frigidaire Oven Module
29IGNITER-ELECTRODE OVEN
30CONTROL – REGULAR
31WCI 3018603
32WCI 3018617
33OVEN IGNITER SWITCH
34WCI 136T355W03
