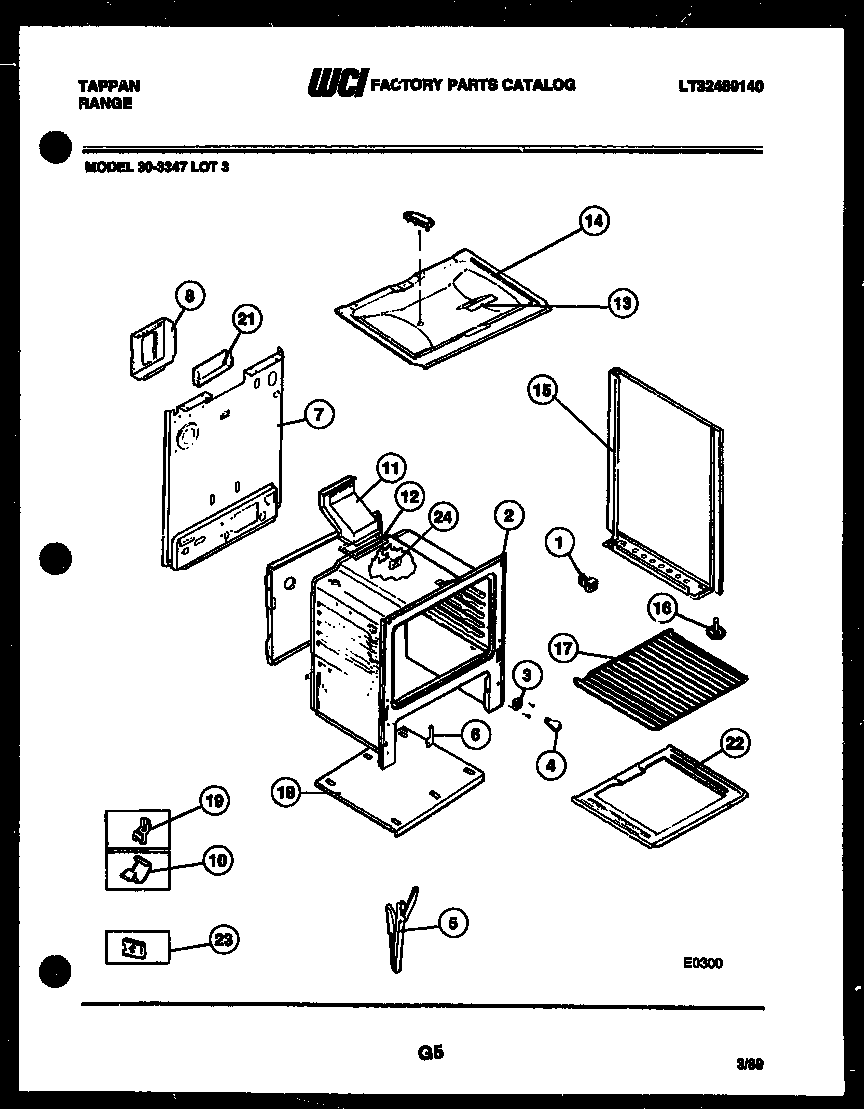

30-3347-00-03 07 – BODY PARTS

Products

Position	Product
*21931	5304534000 Frigidaire Cord
1	SPACER-BODYSIDE, (8)
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	CHANL-DR HNG (2)
6	WCI 3131570
7	WCI 3131567
8	WCI 3131660
11	WCI 3131904
12	316542102 Frigidaire Flue Gasket
13	WCI 3131101
14	WCI 3011597
15A	PNL. B/S (LH WHITE)
15	PNL. B/S (RH WHITE)
16	WCI 08010569
17	316067902 Frigidaire Oven Rack
18A	WCI 3017146
18	BTTM-OVEN
18B	WCI 3131246
19B	316539800 Frigidaire Oven Retainer
19A	FSTNR PWR CORD (2) (NON-ILLUSTRATED)
19	5303284616 Frigidaire Range Bulb Clip Thermostat
21A	3131903 Frigidaire Door/Drawer Bumper
21B	316064600 Frigidaire Oven Support
21	WCI 3131348
22	WCI 3131180
22A	PLATE-OV. LT MTG (NON-ILLUSTRATED)
22B	COVER-POWER CORD, (NON-ILLUSTRATED)
23B	316282700 Frigidaire Oven Screw
23A	COVER-BURNER BOX
23	3203010 Frigidaire Clip
23C	WCI 3015371
24	COVER-IGNITOR
