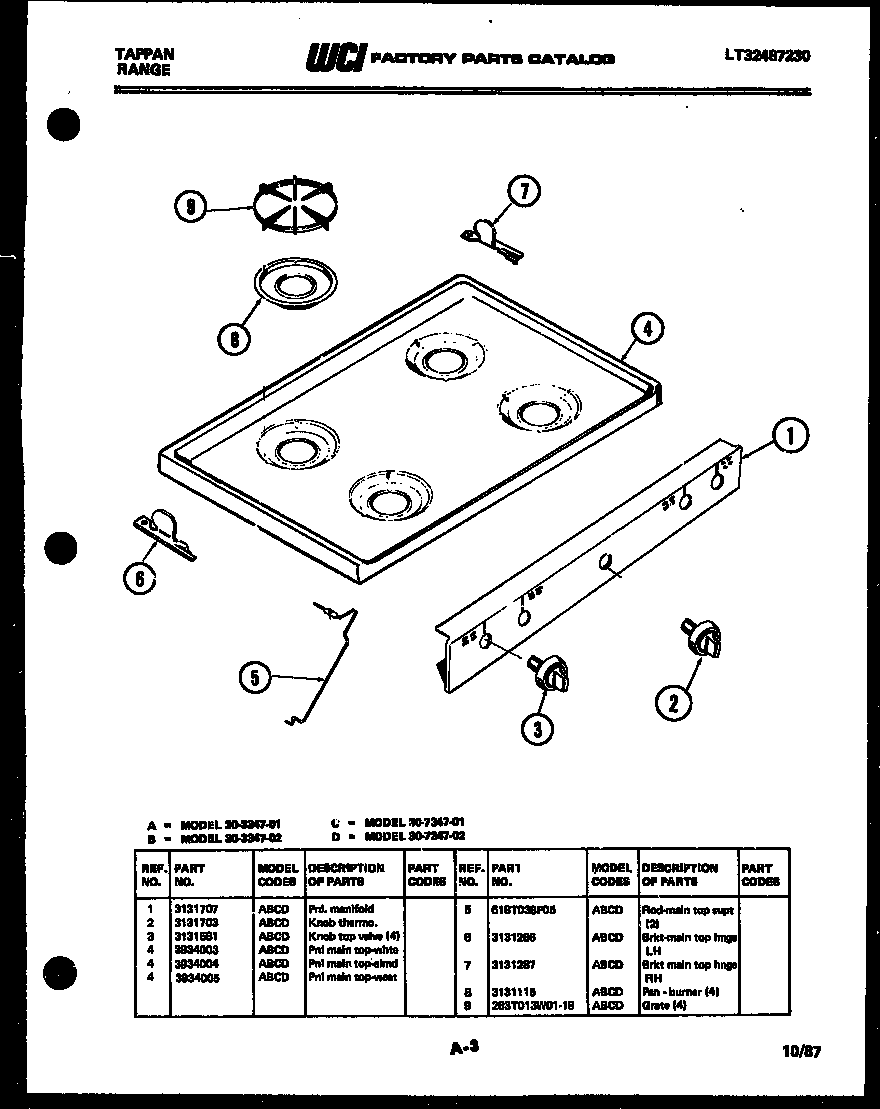

30-3347-23-02 03 – COOKTOP PARTS

Written by

Products

Position	Product
1	WCI 3131707
2	KNOB-THERMOSTAT
3	KNOB, TOP VALVE (4)
4	PNL MAIN TOP-ALMOND
5	ROD-MAIN TOP SUPT.
6	BRKT MAIN TOP HNG LH
7	BRKT MAIN TOP HNG RH
8	5303131115 Frigidaire Range Chrome Drip Bowl, 8"
9	316055800 Frigidaire Oven Grate
