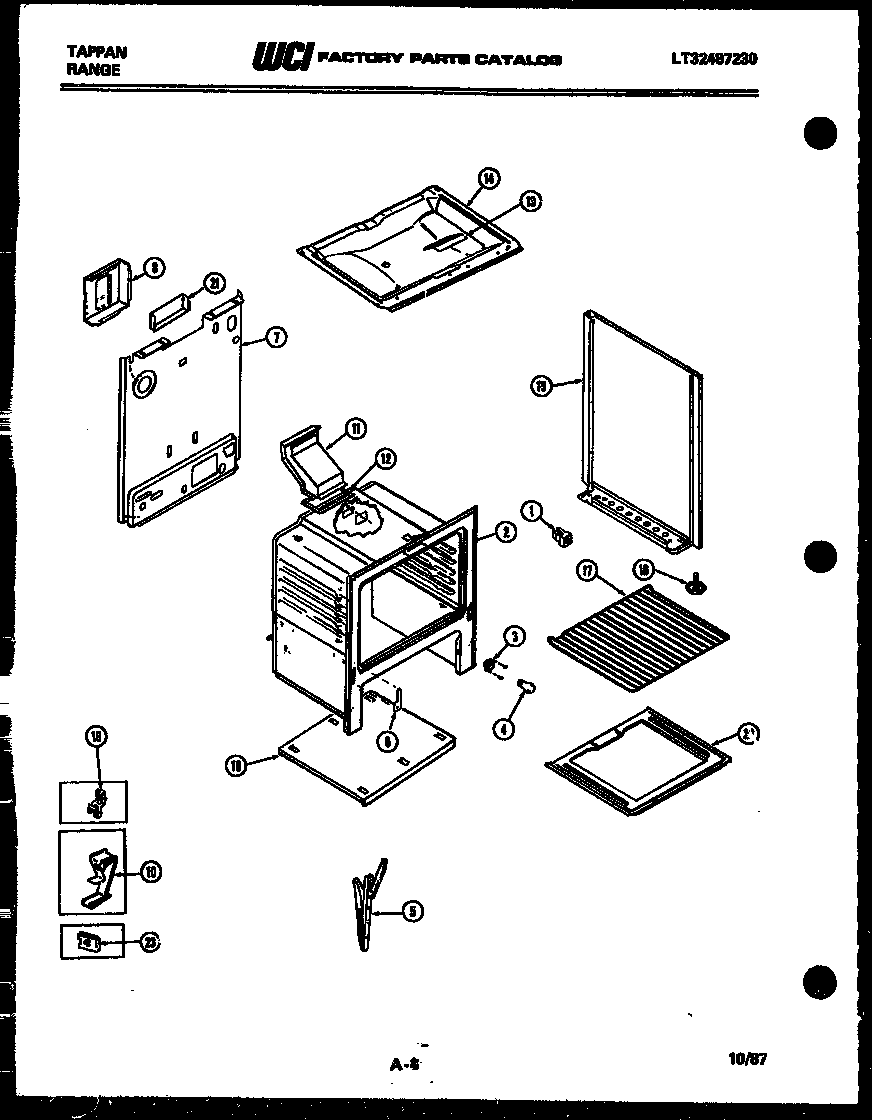

30-3347-66-02 07 – BODY PARTS

Products

PositionProduct
*69764316282700 Frigidaire Oven Screw
*69763COVER-FRONT
1WCI 665T188P02
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5CHANL-DR HNG (2)
6A5304534000 Frigidaire Cord
6WCI 3131570
7WCI 3131567
8WCI 665T421F02-18
10CLIP, WIRE
11WCI 252T048W01-18
12316542102 Frigidaire Flue Gasket
13WCI 3131101
14WCI 095T030F02-86
15PNL. B/S (LH WEAT)
15PNL. B/S (RH WEAT)
16WCI 636M004P01
17316067902 Frigidaire Oven Rack
18BWCI 3131246
18WCI 058T036F02-86
18AWCI 3131201
19B316539800 Frigidaire Oven Retainer
19AFSTNR-POWER CORD (NON-ILLUSTRATED)
195303284616 Frigidaire Range Bulb Clip Thermostat
21A3131903 Frigidaire Door/Drawer Bumper
21B316064600 Frigidaire Oven Support
21WCI 3131348
22BCOVER-POWER CORD, (NON-ILLUSTRATED)
22WCI 3131180
22APLATE-OV. LT MTG (NON-ILLUSTRATED)
233203010 Frigidaire Clip
