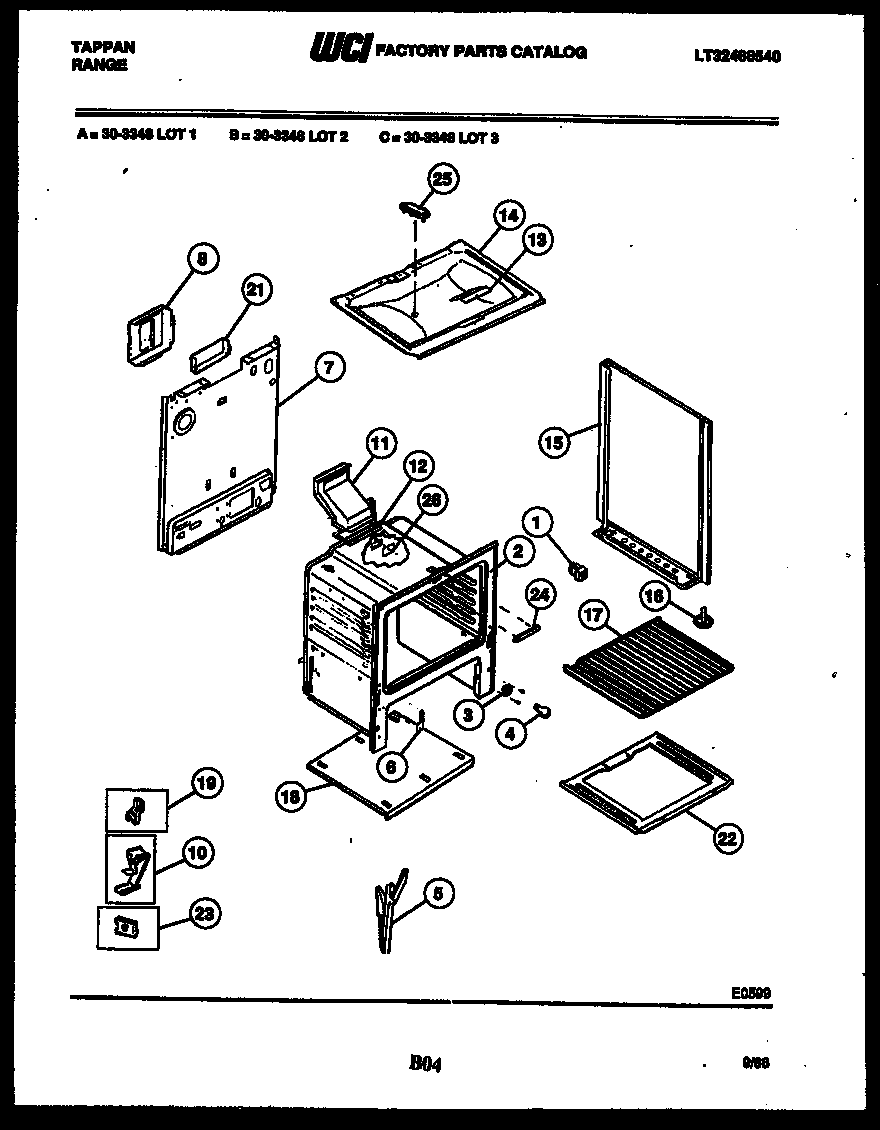

30-3348-00-01 06 – BODY PARTS

30-3348-00-01 06 – BODY PARTS

Written by

in

30-3348-00-01 06 – BODY PARTS

Products

PositionProduct
1WCI 665T188P02
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5CHANL-DR HNG (2)
6WCI 3131570
6A5304534000 Frigidaire Cord
7WCI 3131567
8WCI 3131660
10CLIP, WIRE
11WCI 3131904
12316542102 Frigidaire Flue Gasket
13WCI 3131101
14WCI 095T030F02-86
15PNL. B/S (RH WHITE)
15APNL. B/S (LH WHITE)
16WCI 636M004P01
17316067902 Frigidaire Oven Rack
18BWCI 3131246
18WCI 058T036F02-86
18AINSULATION, OVEN WRAPPER
19B316539800 Frigidaire Oven Retainer
195303284616 Frigidaire Range Bulb Clip Thermostat
19AFSTNR-POWER CORD (NON-ILLUSTRATED)
21B316064600 Frigidaire Oven Support
21WCI 3131348
21A3131903 Frigidaire Door/Drawer Bumper
22BCOVER-POWER CORD, (NON-ILLUSTRATED)
22APLATE-OV. LT MTG (NON-ILLUSTRATED)
22WCI 3131180
233203010 Frigidaire Clip
24A316282700 Frigidaire Oven Screw
25WCI 3015371
26COVER PLATE (NON-ILLUSTRATED)
