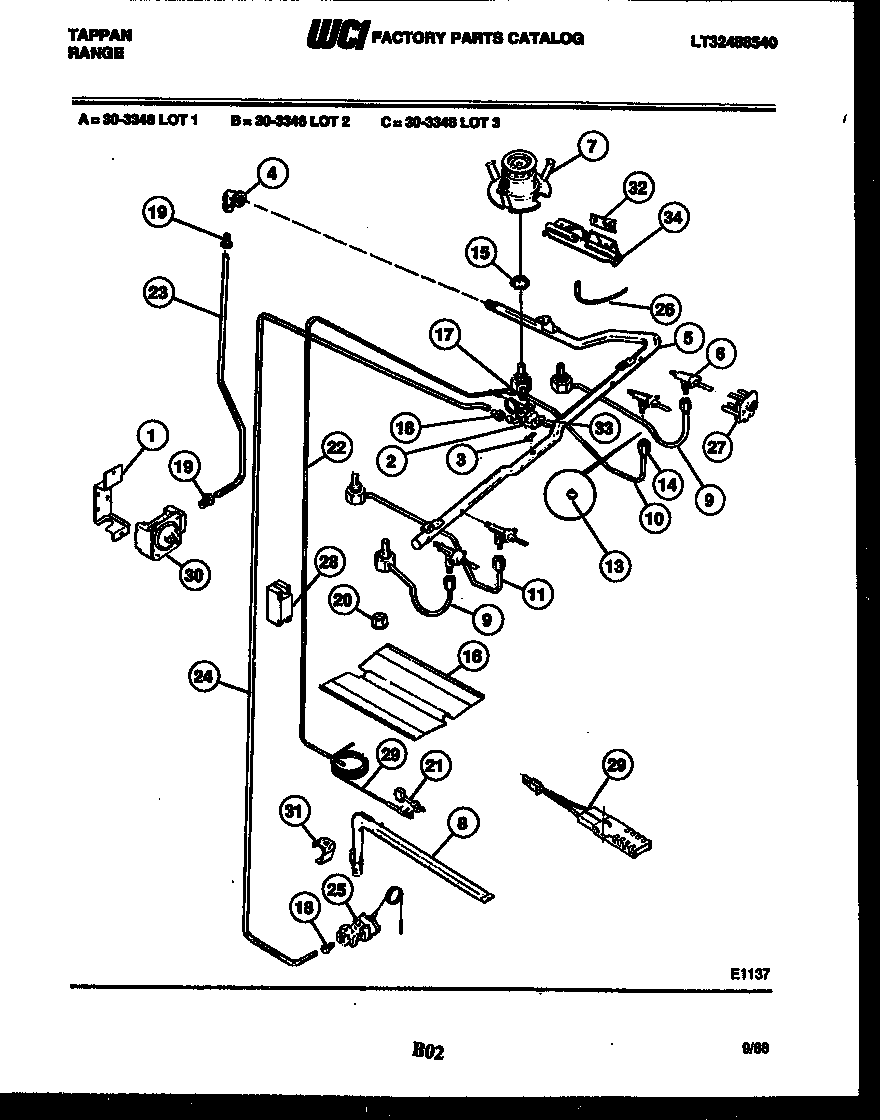

30-3348-00-02 05 – BURNER, MANIFOLD AND GAS CONTROL

30-3348-00-02 05 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

30-3348-00-02 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*17088WCI 3051420
2WCI 3018348
5WCI 3201085
6WCI 3201080
7WCI 079T032S02
8WCI 3131571
9BWCI 3017933
9AWCI 3017932
10PANEL-BOTTOM
11WCI 3017935
13WCI 247T074P01
14NUT COMPRESSN (4)
15NUT SPECIAL
16WCI 3131327
17WCI 3131404
18WCI 3131403
19FITTING-LOXIT (8)
205303013272 Frigidaire Oven Nut
21PILOT, OVEN
22TUBE, OVEN PILOT, 3/16
23TUBE-REGUL TEE
24WCI 750T085H13
25WCI 3131405
26IGNITER-TOP BURNR (4)
27WCI 3017931
285303200332 Frigidaire Oven Module
29IGNITER-ELECTRODE OVEN
30CONTROL, REGULATOR
31WCI 072T821F01
32RETAINER ELECTROS
33WCI 695T220P01
34WCI 136T355W03
