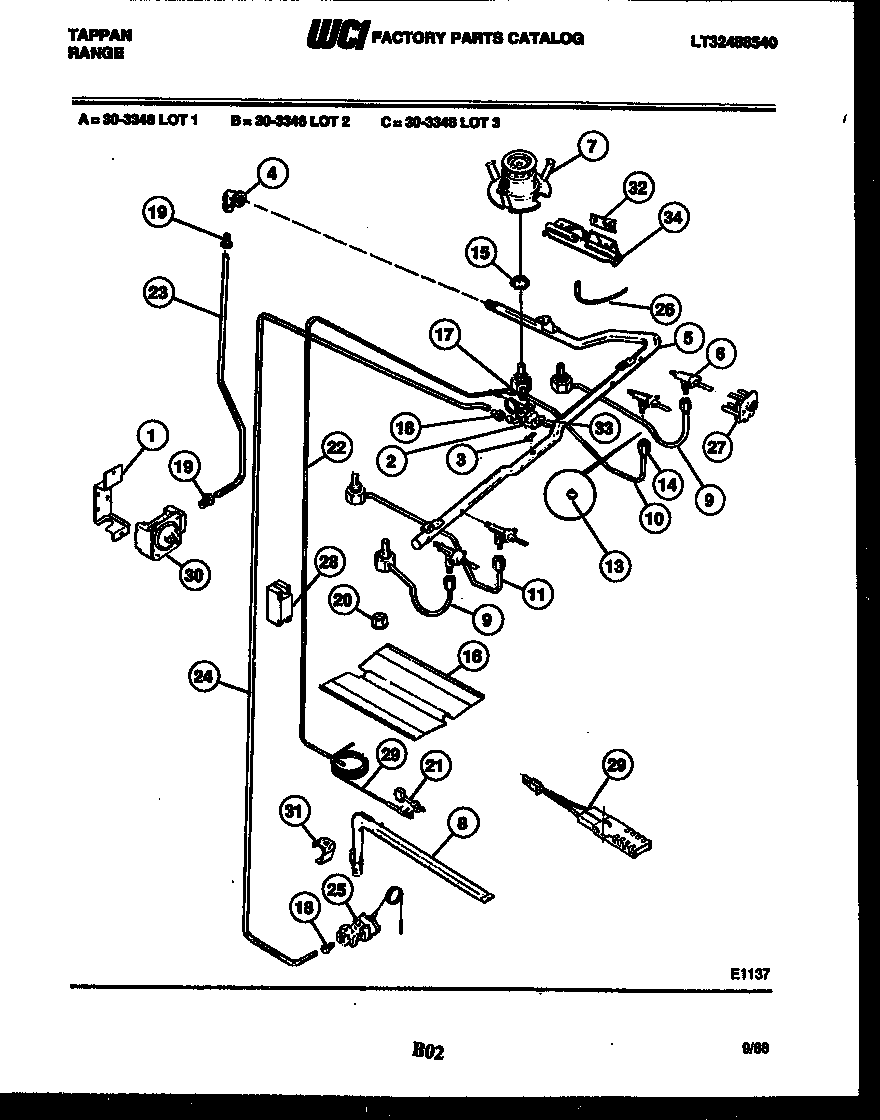

30-3348-66-03 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
*17088	WCI 3051420
1	316091600 Frigidaire Oven Bracket
2	WCI 3201084
5	WCI 3201083
7	WCI 079T032S02
8	WCI 3131439
9A	WCI 3017932
9B	WCI 3017933
10	PANEL-BOTTOM
11	WCI 3017935
13	WCI 247T074P01
14	NUT COMPRESSN (4)
15	NUT SPECIAL
16	WCI 3131327
17	WCI 3131404
18	WCI 3131403
19	FITTING-LOXIT (8)
20	5303013272 Frigidaire Oven Nut
23	TUBE-REGUL TEE
24	TUBE – ALUM 3/8
25	3203459 Frigidaire Oven Range Dual Gas Safety Valve
26	IGNITER-TOP BURNER (4)
27	WCI 3017931
28	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
29A	5303935066 Frigidaire Oven Flat Igniter 17" Leads
30	5303935125 Frigidaire Pressure Regulator
31	WCI 072T821F01
32	RETAINER ELECTROS
33	WCI 695T220P01
34	WCI 136T355W03
