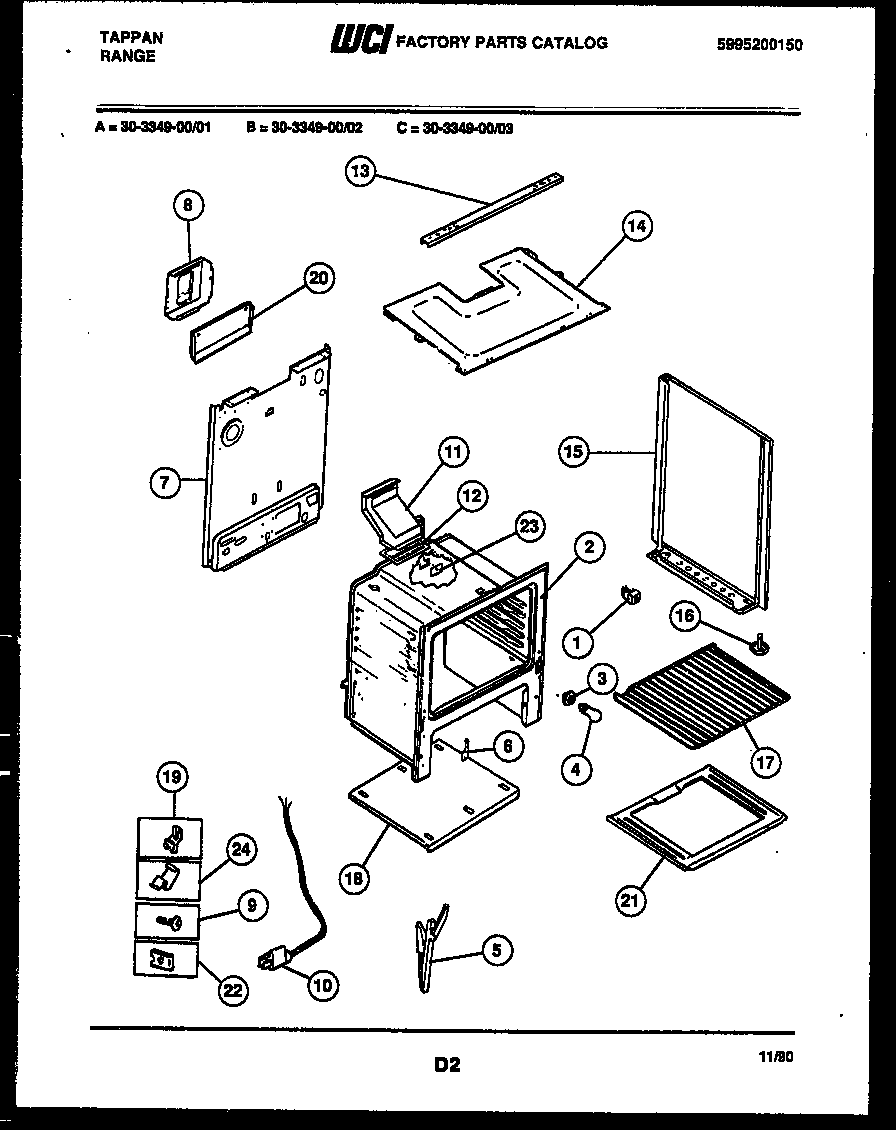

30-3349-00-01 07 – BODY PARTS

Products

PositionProduct
*25808WCI 19100200002
*25808ANTI-TIP KIT (NOT ILLUSTRATED)
*258073131903 Frigidaire Door/Drawer Bumper
*25807COVER-POWER CORD, (NON-ILLUSTRATED)
*25808COVER-OVEN FRONT
*25808SHIELD-FLUE, (NON-ILLUSTRATED)
*25808WCI 3051511
*25808SHIELD-TOP (NON-ILLUSTRATED)
*25807316064600 Frigidaire Oven Support
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5CHAN-DOOR HINGE (2)
6WCI 3131570
7WCI 3203082
8WCI 3131660
9316282700 Frigidaire Oven Screw
105304515659 Frigidaire Oven Power Cord
11WCI 3131904
12316542102 Frigidaire Flue Gasket
13CHANNEL-BURNER BOX
14WCI 3202791
15PNL-BODYSIDE RH-WHITE
15APNL-BODYSIDE LH-ALMOND
15PNL-BODYSIDE RH-ALMOND
15APNL-BODYSIDE LH-WHITE
16SCREW-LEVELING
17316067902 Frigidaire Oven Rack
18BTTM-OVEN
195303284616 Frigidaire Range Bulb Clip Thermostat
20WCI 3131348
21WCI 5303270160
223203010 Frigidaire Clip
23CWCI 08067961
23BINSUL – OVEN BACK (NON-ILLUSTRATED)
23COVER-IGNITOR
23AINSULATION, OVEN WRAPPER
24316539800 Frigidaire Oven Retainer
