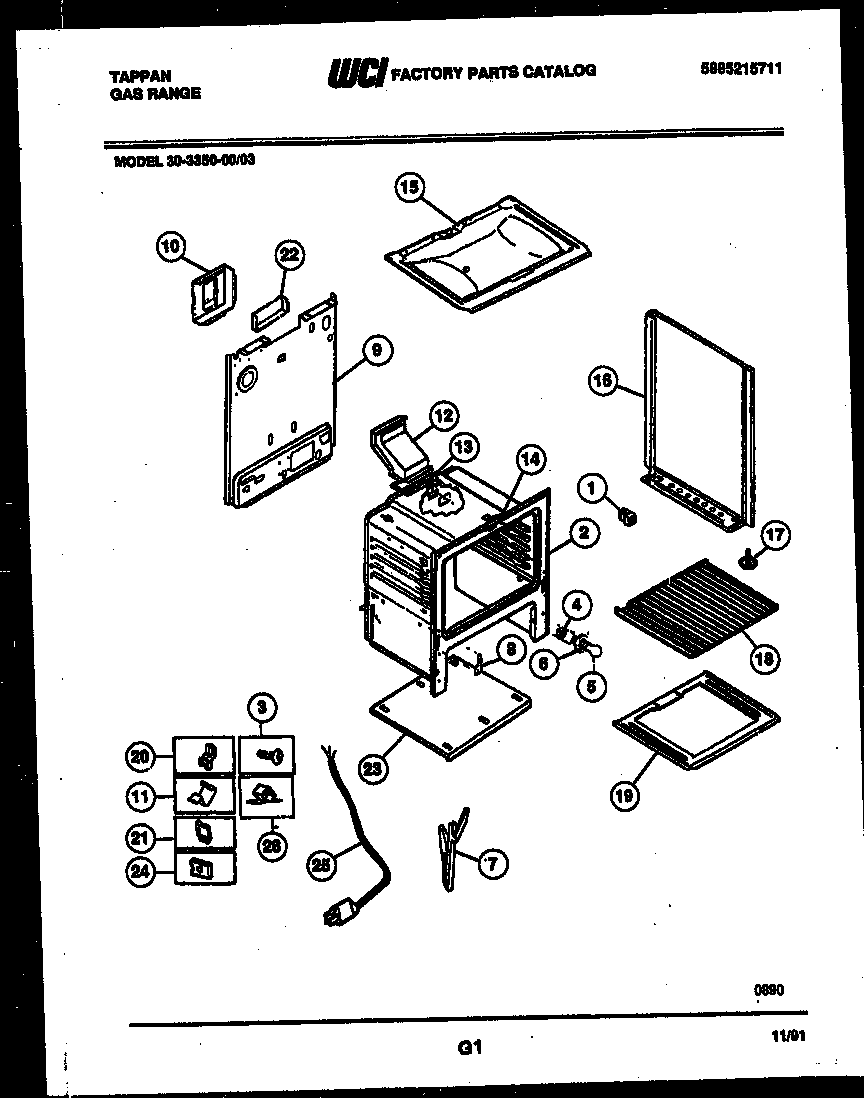

30-3350-00-03 07 – BODY PARTS

Products

Position	Product
*61443	WCI 19100200027
*61442	WCI 08067961
*61443	ANTI-TIP KIT (NOT ILLUSTRATED)
*61442	3131903 Frigidaire Door/Drawer Bumper
*61442	316064600 Frigidaire Oven Support
*61442	INSUL – OVEN BACK (NON-ILLUSTRATED)
*61442	COVER-POWER CORD, (NON-ILLUSTRATED)
*61442	INSULATION, OVEN WRAPPER
*61443	COVER-IGNITOR
1	SPACER-BODYSIDE, (8)
3	316282700 Frigidaire Oven Screw
4	316116400 Frigidaire Oven Light Socket
5	316538904 Frigidaire Oven Lamp Light
6	WCI 5303271606
7	CHAN-DOOR HINGE (2)
8	WCI 3131570
9	WCI 3203082
10	WCI 3131660
11	CLIP-WIRE
12	WCI 3131904
13	316542102 Frigidaire Flue Gasket
14	COVER-OVEN FRONT
15	WCI 5303269487
16	PNL-B/S-RH-WHITE
16A	PNL-B/S-LH-WHITE
17	SCREW-LEVELING
17A	WCI 08010570
18	316067902 Frigidaire Oven Rack
19	BTTM-OVEN
20	WCI 08010556
21	316539800 Frigidaire Oven Retainer
22	WCI 5303280614
23	WCI 5303270160
24	3203010 Frigidaire Clip
25	5304515659 Frigidaire Oven Power Cord
26	3205821 Frigidaire Clip
