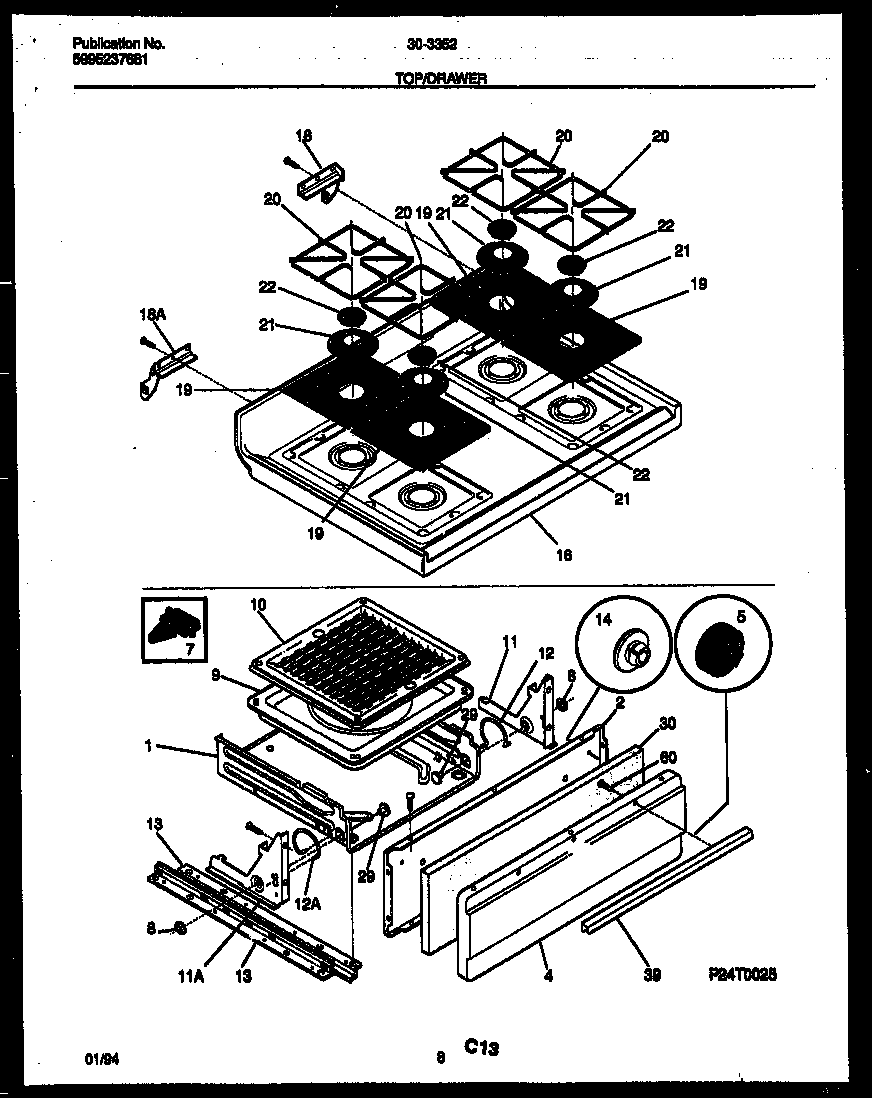

30-3352-00-02 05 – COOKTOP AND BROILER DRAWER PARTS

30-3352-00-02 05 – COOKTOP AND BROILER DRAWER PARTS

Written by

in

30-3352-00-02 05 – COOKTOP AND BROILER DRAWER PARTS

Products

PositionProduct
1DRAWER-BROILER
2WCI 3202803
4PNL-DRAWER (WHTE)
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11AWCI 3200673
11WCI 3018860
12SPRING-BROILER, RH
12AWCI 3018618`
13WCI 3131153
14WCI 3206216
16BGUSSET-MTG (LH) (NON-ILLUSTRATED)
16WCI 5303285700
16AGUSSET-MTG (RH) (NON-ILLUSTRATED)
18B131243700 Frigidaire Screw
19WCI 316011400
20WCI 5303269632
21WCI 316035101
22316010901 Frigidaire Burner Cap P1
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39HANDLE-DRAWER, WHITE
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
