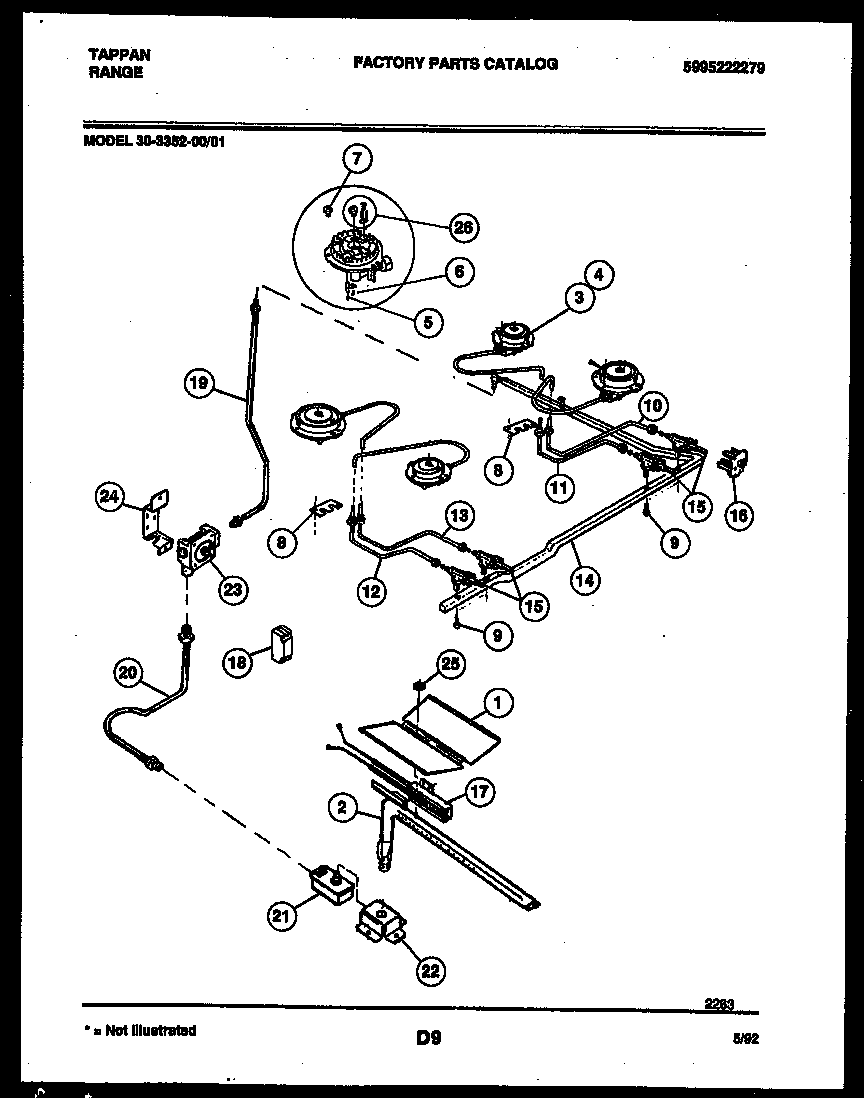

30-3352-23-01 06 – BURNER, MANIFOLD AND GAS CONTROL

30-3352-23-01 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

30-3352-23-01 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 3203265
2WCI 3131439
3WCI 316010600
4WCI 316010700
5316011200 Frigidaire Oven Top Burner Igniter
6WCI 316011100
7ORIFICE-TOP BURNER, (4)
8WCI 5303269491
9316048200 Frigidaire Oven Screw
10BURNER TUBE-RF
11BURNER TUBE-RR
12316059613 Frigidaire Oven Tube-LF
13316059615 Frigidaire Oven Tube
14WCI 5303271375
15WCI 316020400
16SWITCH-IGNITER, (4)
175303935066 Frigidaire Oven Flat Igniter 17" Leads
185304505695 Frigidaire Oven Module
19TUBE-ALUM 3/8 REG/MANIFOLD PIPE
20316065006 Frigidaire Tube P1
213203459 Frigidaire Oven Range Dual Gas Safety Valve
22BRKT.-VALVE
235303935125 Frigidaire Pressure Regulator
24316091600 Frigidaire Oven Bracket
255303013272 Frigidaire Oven Nut
25AWCI 3018603
26WCI 5303286386
