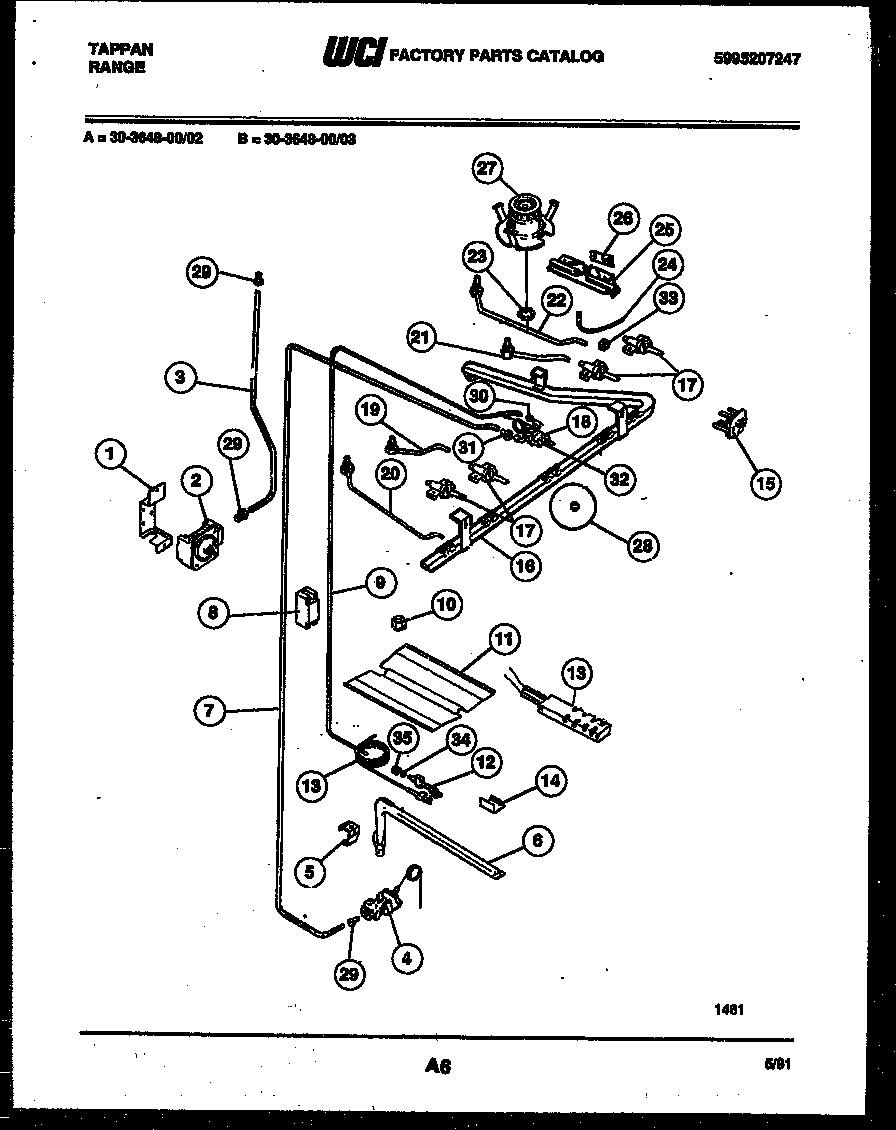

30-3648-00-03 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
1	316091600 Frigidaire Oven Bracket
2	5303935125 Frigidaire Pressure Regulator
3	TUBE-REGUL TEE
4	3203459 Frigidaire Oven Range Dual Gas Safety Valve
5	WCI 3018603
6	WCI 3131439
7	TUBE – ALUM 3/8
8	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
10	5303013272 Frigidaire Oven Nut
11	WCI 3203265
13	5303935066 Frigidaire Oven Flat Igniter 17" Leads
14	COVER-IGNITOR
15	WCI 5303017931
16	WCI 3201083
17	WCI 5303201080
18	WCI 3203457
19	WCI 3017932
20	WCI 3017935
21	WCI 3017933
22	PANEL-BOTTOM
23	NUT, SPECIAL
24	IGNITER-TOP BURNER (4)
25	WCI 3206267
26	WCI 3018617
27	BURNER TOP (4)
28	FERRULE (4)
29	FITTING-LOXIT (8)
33A	BOLT VALVE MTG
33	NUT COMPRESSN (4)
