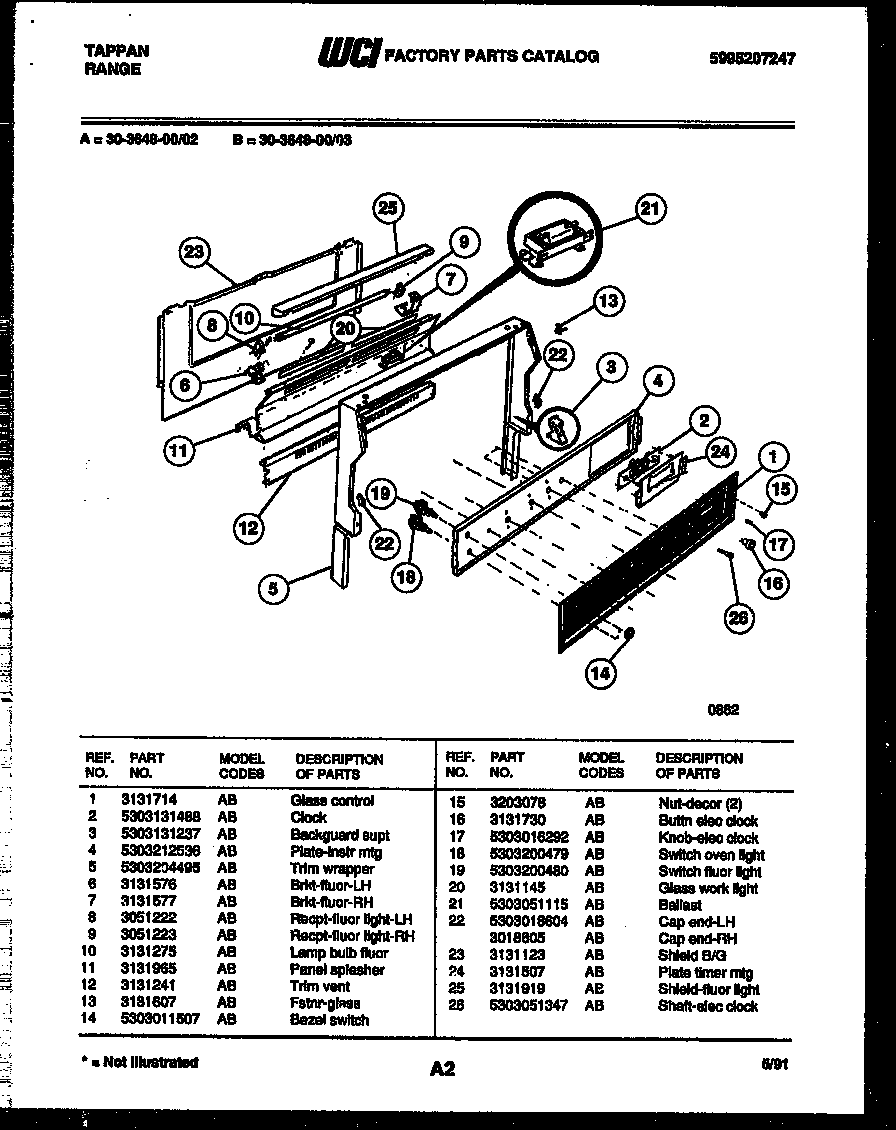

30-3648-66-02 02 – BACKGUARD

30-3648-66-02 02 – BACKGUARD

Written by

in

30-3648-66-02 02 – BACKGUARD

Products

PositionProduct
1WCI 3131714
2WCI 5303131488
3SUPPORT-BACKGUARD,(2)
4PLATE – INST MOUNTING
5WCI 5303204495
6BRKT-FLUOR LT MTG LH
7BRKT-FLUOR LT MTG RH
8RECEPTACLE-FLU LT LH
9RECEPTACLE-FLU LT RH
10BULB-FLUOR
11PANEL, SPLASHER
12WCI 3131241
13FASTENER, GLASS (2)
14WCI 5303011507
15NUT-DECOR (2)
16WCI 3131730
17WCI 5303016292
18WCI 5303200479
19SWITCH FL LIGHT
20GLASS-WORK LITE (2)
21WCI 5303051115
22ACAP-RH
22WCI 5303018604
23SHIELD-BACKGUARD,REAR WALL
24WCI 3131507
25WCI 3131919
26WCI 5303051347
