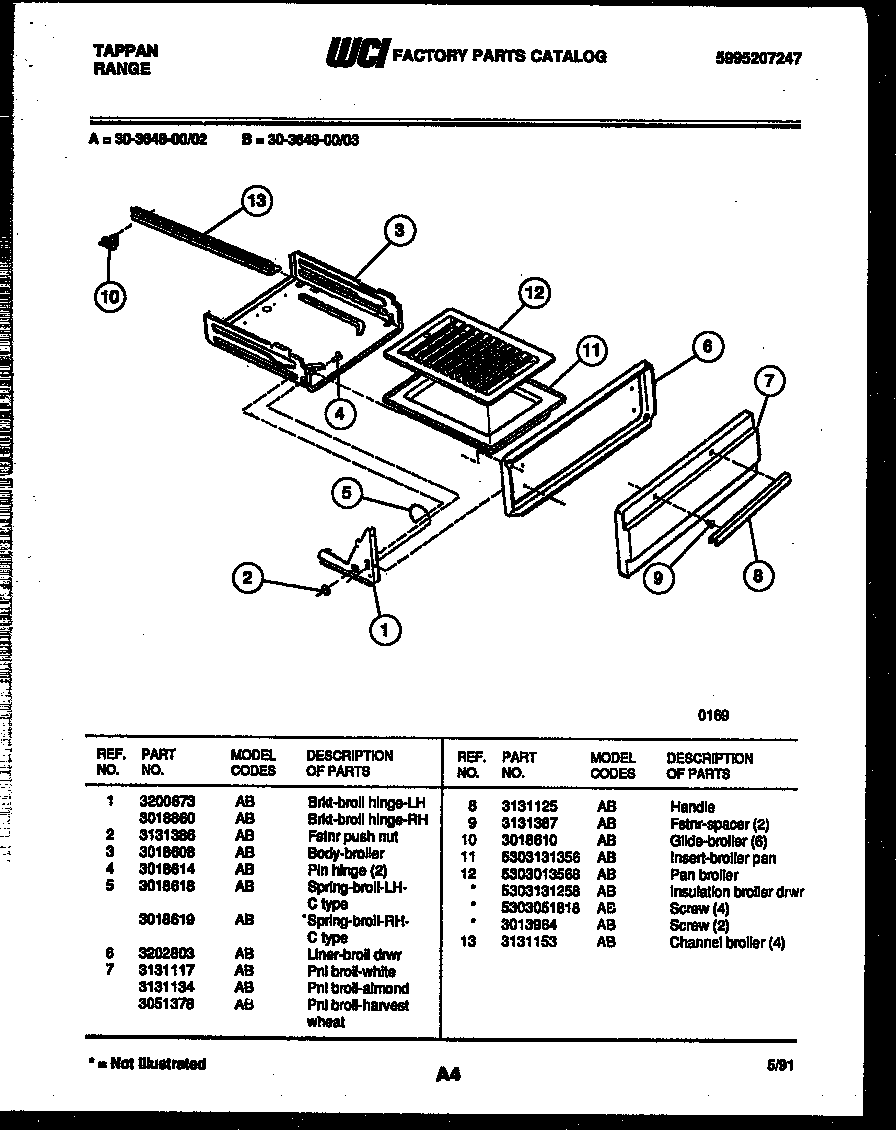

30-3648-66-02 04 – BROILER DRAWER PARTS

30-3648-66-02 04 – BROILER DRAWER PARTS

Written by

in

30-3648-66-02 04 – BROILER DRAWER PARTS

Products

PositionProduct
1AWCI 3018860
1WCI 3200673
2WCI 3131386
3DRAWER-BROILER
4PIN, HINGE (2)
5ASPRING-BROILER, RH
5WCI 3018618`
6WCI 3202803
7PNL DRAWER WHEAT
8WCI 3131125
9FSTNR, SPACER (2)
10GLIDE-DRAWER, REAR
11WCI 5303131356
12B5303300265 Frigidaire Oven Screw
12CSCREW-PNL ASSY (2)
12PAN-BROILER
12AINSULATION, BROILER DRAWER
13WCI 3131153
