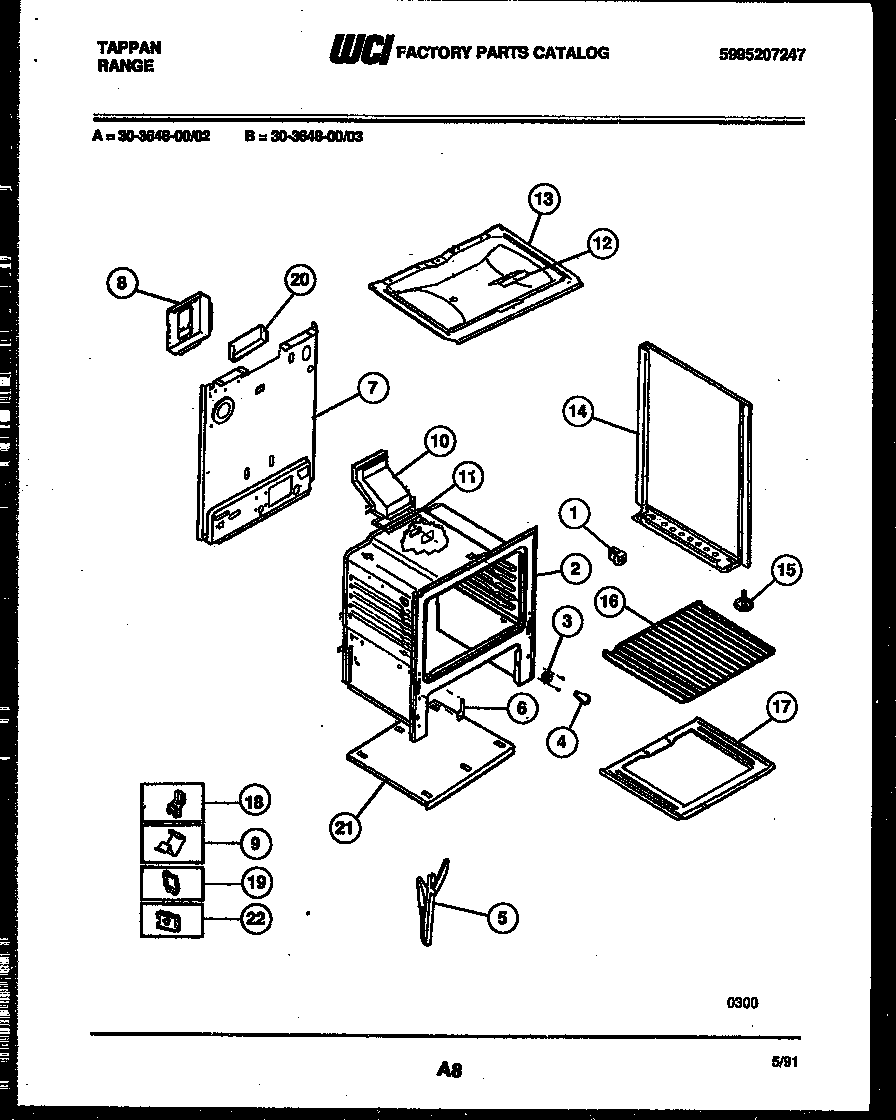

30-3648-66-03 07 – BODY PARTS

30-3648-66-03 07 – BODY PARTS

Written by

in

30-3648-66-03 07 – BODY PARTS

Products

PositionProduct
*42660WCI 191F018F255
*426585304515659 Frigidaire Oven Power Cord
*42659WCI 08067961
*42660WCI 3015371
*426593131903 Frigidaire Door/Drawer Bumper
*42658INSUL – OVEN BACK (NON-ILLUSTRATED)
*42659PLATE-OV. LT MTG (NON-ILLUSTRATED)
*42659COVER-POWER CORD, (NON-ILLUSTRATED)
*42658INSULATION, OVEN WRAPPER
*42659COVER-OVEN FRONT
*42660316282700 Frigidaire Oven Screw
*42659316064600 Frigidaire Oven Support
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5CHAN-DOOR HINGE (2)
6WCI 3131570
7WCI 3203082
8WCI 3131660
9CLIP-WIRE
10WCI 3131904
11316542102 Frigidaire Flue Gasket
12WCI 08067757
13WCI 3011597
14PNL-B/S RH-WHEAT
14APNL-B/S LH-WHEAT
14AWCI 5303269545
14WCI 5303269543
14PNL-B/S-RH-WHITE
14APNL-B/S-LH-WHITE
15SCREW-LEVELING
15AWCI 08010570
16316067902 Frigidaire Oven Rack
17BTTM-OVEN
185303284616 Frigidaire Range Bulb Clip Thermostat
20WCI 3131348
21WCI 5303270160
223203010 Frigidaire Clip
