30-3649-00-05 02 – BACKGUARD

30-3649-00-05 02 – BACKGUARD

Written by

in

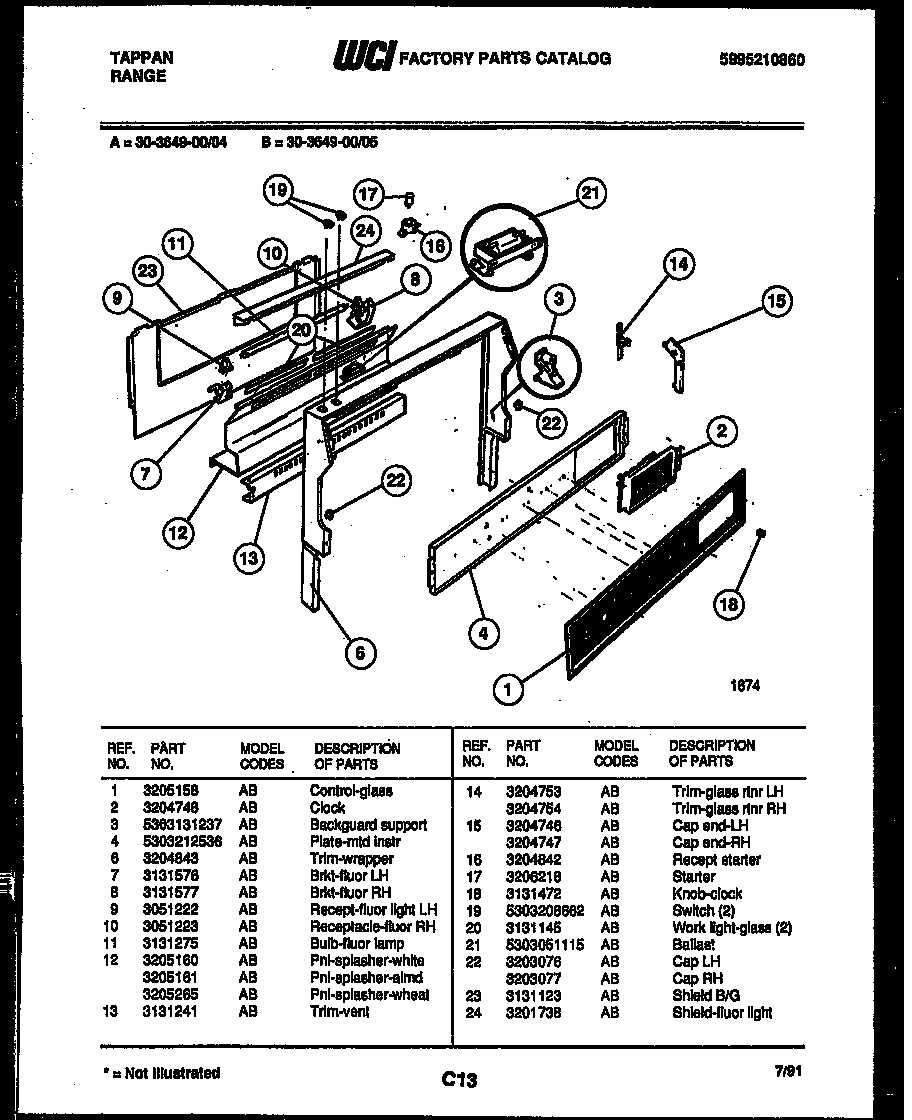

30-3649-00-05 02 – BACKGUARD

Products

PositionProduct
1WCI 3205158
2WCI 3204748
3SUPPORT-BACKGUARD,(2)
4PLATE – INST MOUNTING
6WCI 3204843
7BRKT-FLUOR LT MTG LH
8BRKT-FLUOR LT MTG RH
9RECEPTACLE-FLU LT LH
10RECEPTACLE-FLU LT RH
11BULB-FLUOR
12WCI 3205160
12WCI 3205161
12WCI 3205265
13WCI 3131241
14ATRIM-GLASS RETAINER,RH
14TRIM-GLASS RETAINER,LH
15AWCI 3204747
15WCI 3204746
16RECEPTACLE, STARTER
17STARTER-LAMP
18KNOB-CLOCK
195308015487 Frigidaire Switch-Oven Light
20GLASS-WORK LITE (2)
21WCI 5303051115
22CAP-LH
22ACAP-RH
23SHIELD-BACKGUARD,REAR WALL
24SHIELD – FLUOR. LT
