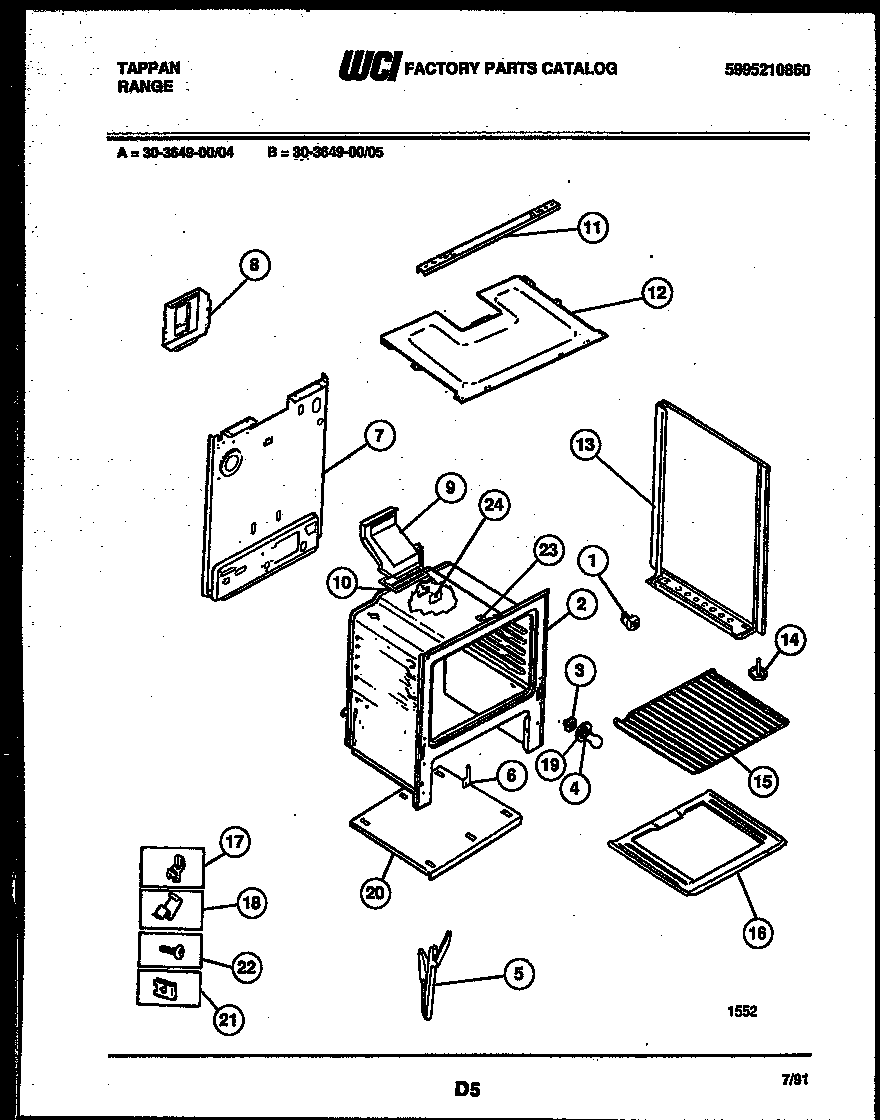

30-3649-00-05 07 – BODY PARTS

Products

PositionProduct
*56570ANTI-TIP KIT (NOT ILLUSTRATED)
*56571WCI 3131348
*56571WCI 19100200002
*565703131903 Frigidaire Door/Drawer Bumper
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5WCI 316007002
6WCI 3131570
6ASHIELD-FLUE, (NON-ILLUSTRATED)
7WCI 3203082
8WCI 3131660
9WCI 3131904
10316542102 Frigidaire Flue Gasket
11CHANNEL-BURNER BOX
12BURNER BOX BOTTOM
13APNL-B/S LH-WHEAT
13PNL-B/S RH-WHEAT
13AWCI 5303269545
13WCI 5303269543
13PNL-B/S-RH-WHITE
13APNL-B/S-LH-WHITE
14AWCI 08010570
14SCREW-LEVELING
15316067902 Frigidaire Oven Rack
16AINSULATION, OVEN WRAPPER
16BTTM-OVEN
16BINSUL – OVEN BACK (NON-ILLUSTRATED)
17AWCI 08067961
17WCI 08010556
18316539800 Frigidaire Oven Retainer
19A316064600 Frigidaire Oven Support
19WCI 5303271606
20ASHIELD-TOP (NON-ILLUSTRATED)
20B5304515659 Frigidaire Oven Power Cord
20WCI 5303270160
213203010 Frigidaire Clip
22ACOVER-POWER CORD, (NON-ILLUSTRATED)
22316282700 Frigidaire Oven Screw
23COVER-OVEN FRONT
24COVER-IGNITOR
