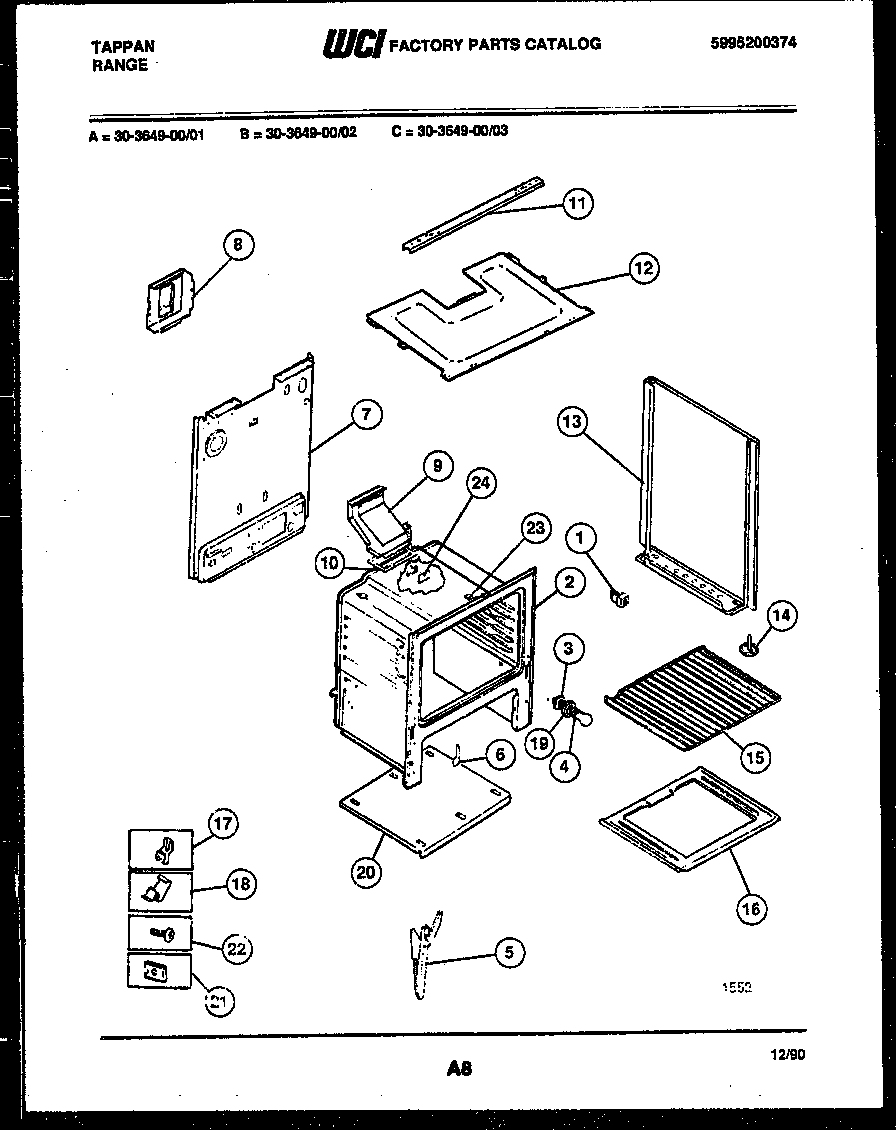

30-3649-23-02 07 – BODY PARTS

Products

Position	Product
*31179	WCI 19100200002
*31179	WCI 3131348
*31179	ANTI-TIP KIT (NOT ILLUSTRATED)
*31179	3131903 Frigidaire Door/Drawer Bumper
1	SPACER-BODYSIDE, (8)
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	CHANL-DR HNG (2)
6A	SHIELD-FLUE, (NON-ILLUSTRATED)
6	WCI 3131570
7	WCI 3203082
8	WCI 3131660
9	WCI 3131904
10	316542102 Frigidaire Flue Gasket
11	CHANNEL-BURNER BOX
12	BURNER BOX BOTTOM
13	PNL B/S-LH (ALMOND)
13A	PNL B/S-RH (ALMOND)
14	SCREW-LEVELING
15	316067902 Frigidaire Oven Rack
16B	INSUL – OVEN BACK (NON-ILLUSTRATED)
16A	INSULATION, OVEN WRAPPER
16	BTTM-OVEN
17A	FSTNR PWR CORD (2) (NON-ILLUSTRATED)
17	5303284616 Frigidaire Range Bulb Clip Thermostat
18	316539800 Frigidaire Oven Retainer
19	WCI 3051511
19A	316064600 Frigidaire Oven Support
20A	SHIELD-TOP (NON-ILLUSTRATED)
20	WCI 3131180
20B	5304515659 Frigidaire Oven Power Cord
21	3203010 Frigidaire Clip
22A	COVER-POWER CORD, (NON-ILLUSTRATED)
22	316282700 Frigidaire Oven Screw
23	COVER-BURNER BOX
24	COVER-IGNITOR
