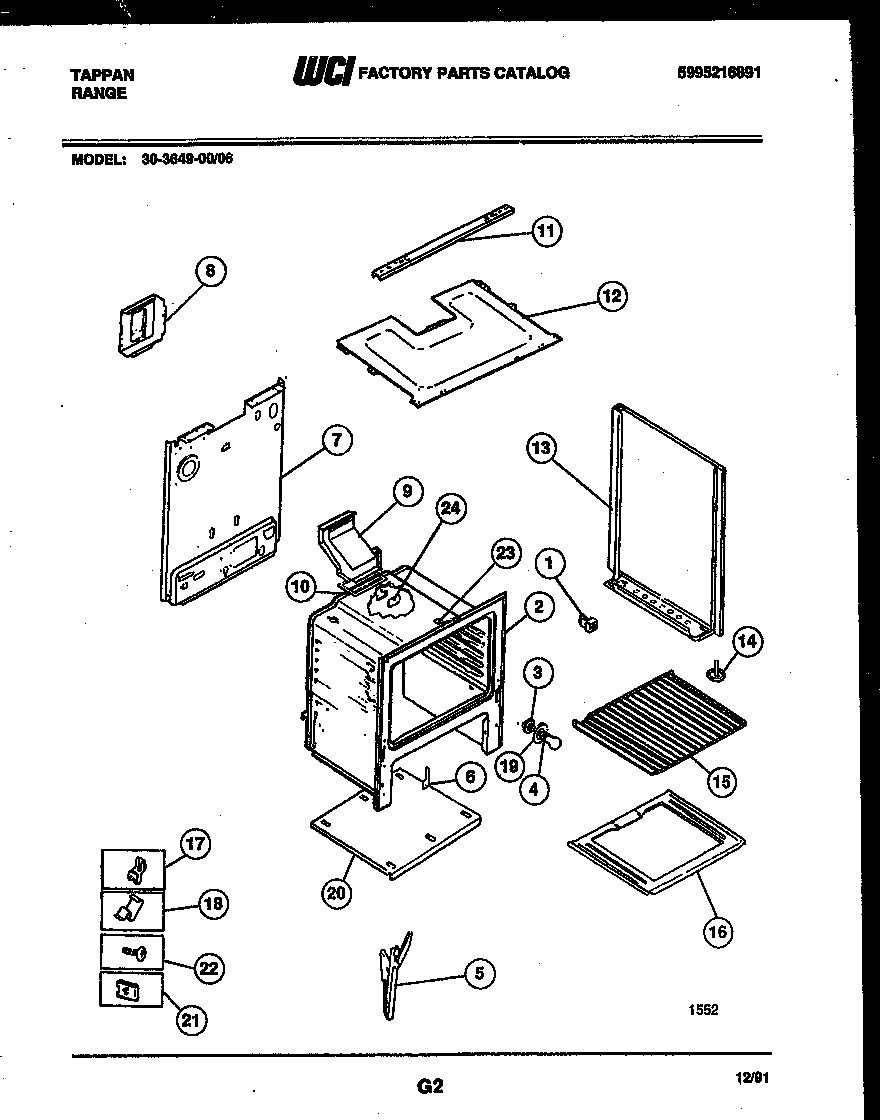

30-3649-23-06 07 – BODY PARTS

Products

Position	Product
*63141	WCI 19100200002
*63141	ANTI-TIP KIT (NOT ILLUSTRATED)
*63141	3131903 Frigidaire Door/Drawer Bumper
*63141	WCI 5303280614
1	SPACER-BODYSIDE, (8)
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	CHAN-DOOR HINGE (2)
6A	SHIELD-FLUE, (NON-ILLUSTRATED)
6	WCI 3131570
7	WCI 3203082
8	WCI 3131660
9	WCI 3131904
10	316542102 Frigidaire Flue Gasket
11	CHANNEL-BURNER BOX
12	BURNER BOX BOTTOM
13	WCI 5303269543
13A	WCI 5303269545
14A	WCI 08010570
14	SCREW-LEVELING
15	316067902 Frigidaire Oven Rack
16	BTTM-OVEN
16B	INSUL – OVEN BACK (NON-ILLUSTRATED)
16A	INSULATION, OVEN WRAPPER
17	WCI 08010556
17A	WCI 08067961
18	316539800 Frigidaire Oven Retainer
19A	316064600 Frigidaire Oven Support
19	WCI 5303271606
20A	SHIELD-TOP (NON-ILLUSTRATED)
20	WCI 5303270160
20B	5304515659 Frigidaire Oven Power Cord
21	3203010 Frigidaire Clip
22	316282700 Frigidaire Oven Screw
22A	COVER-POWER CORD, (NON-ILLUSTRATED)
23	COVER-OVEN FRONT
24	COVER-IGNITOR
