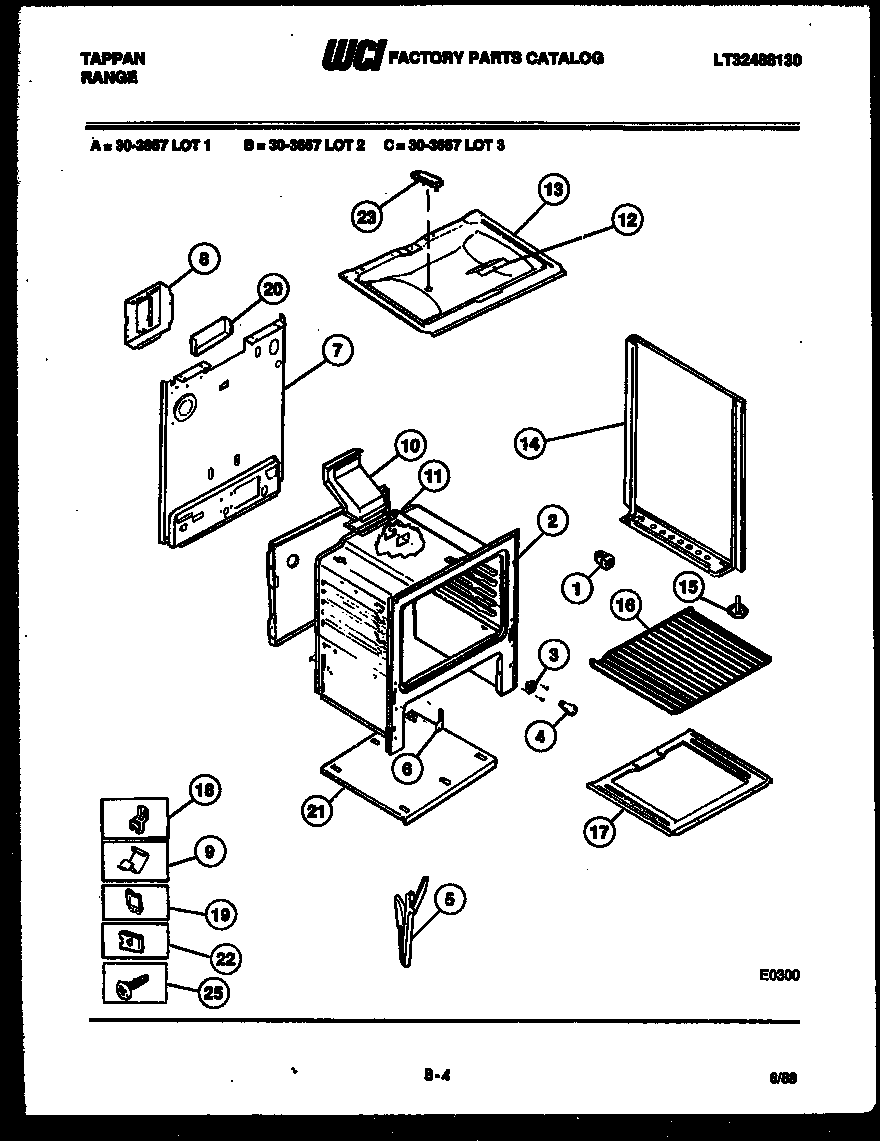

30-3657-00-02 06 – BODY PARTS

Products

Position	Product
*13107	FSTNR-POWER CORD (NON-ILLUSTRATED)
1	WCI 665T188P02
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	CHANL-DR HNG (2)
6	WCI 3131570
7	WCI 3131567
8	WCI 655T421F02-18
9	CLIP, WIRE
10	WCI 3131904
11	316542102 Frigidaire Flue Gasket
12	WCI 3131101
13	WCI 095T030F02-86
14	PNL. B/S (RH WHITE)
14	PNL. B/S (LH WHITE)
15	WCI 636M004P01
16	316067902 Frigidaire Oven Rack
17A	WCI 3131201
17	WCI 058T036F02-86
17B	WCI 3131246
18	5303284616 Frigidaire Range Bulb Clip Thermostat
18A	5304534000 Frigidaire Cord
19	316539800 Frigidaire Oven Retainer
20B	316064600 Frigidaire Oven Support
20	WCI 3131348
20A	3131903 Frigidaire Door/Drawer Bumper
21A	PLATE-OV. LT MTG (NON-ILLUSTRATED)
21B	COVER-POWER CORD, (NON-ILLUSTRATED)
21	WCI 3131180
22	3203010 Frigidaire Clip
23	COVER, BURNER BOX
24	COVER FRNT MAIN (NON-ILLUSTRATED)
25	316282700 Frigidaire Oven Screw
