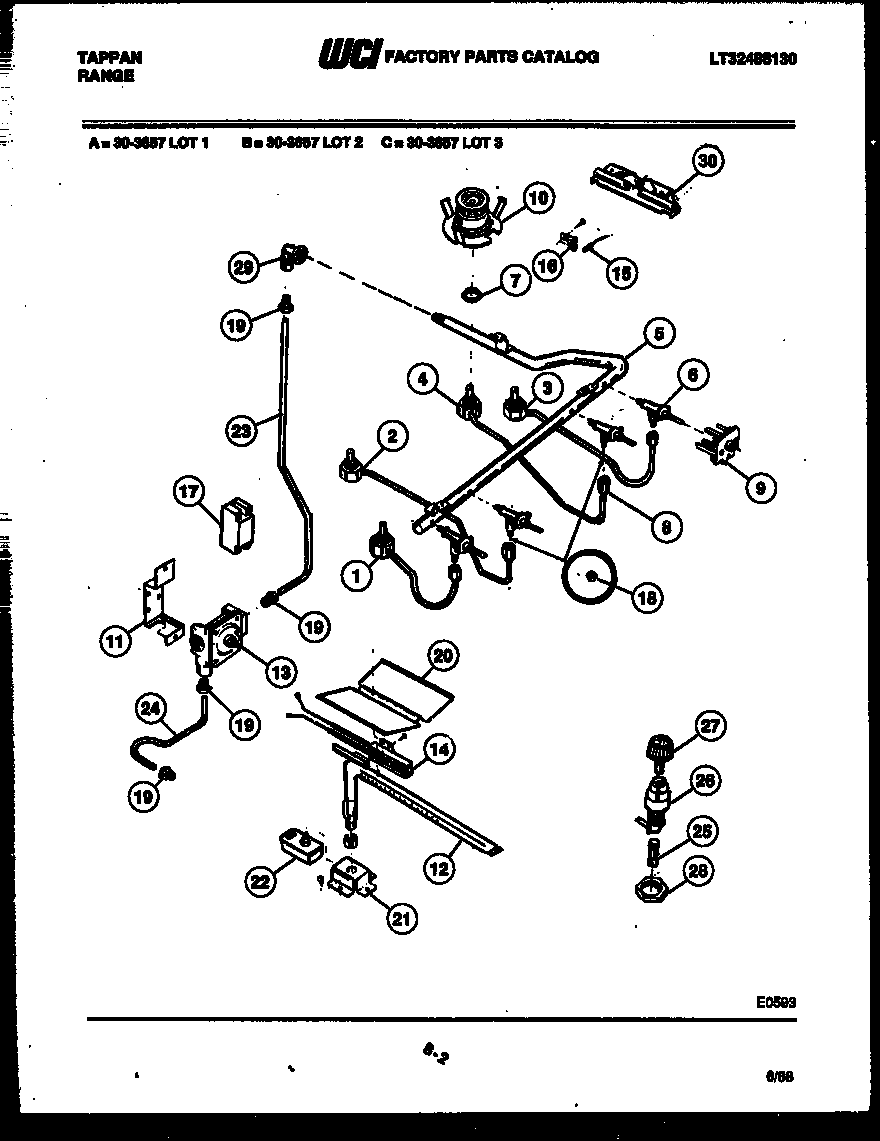

30-3657-00-03 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
*13103	5300809968 Frigidaire Dishwasher P-1 Washer
*13103	WASHER-BLACK
*13104	WCI 3051420
1	WCI 079T033H01
2	WCI 079T033H03
3	WCI 079T033H04
4	WCI 079T033H02
5	MANIFOLD, PIPE
6	WCI 3017846
7	NUT SPECIAL
8	NUT COMPRESSN (4)
9	316035200 Frigidaire Ignition Switch
10	WCI 079T032S02
11	316091600 Frigidaire Oven Bracket
12	WCI 3131439
13	5303935125 Frigidaire Pressure Regulator
14	5303935066 Frigidaire Oven Flat Igniter 17" Leads
15	IGNITER-TOP BURNER (4)
16	RETAINER ELECTROS
17	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
18	WCI 247T074P01
19	FITTING-LOXIT (8)
20	WCI 3131327
21	BRKT.-VALVE
22	3203459 Frigidaire Oven Range Dual Gas Safety Valve
23	TUBE ALUMINUM 3/8
24	TUBE - ALUM 3/8
25	WCI 3131921
26	WCI 597T034P03
27	CAP-FUSE RECEPT.
28	HEX NUT FUSE
29	ELBOW 1/2 NP TO 9/16-24
30	WCI 136T355W03
