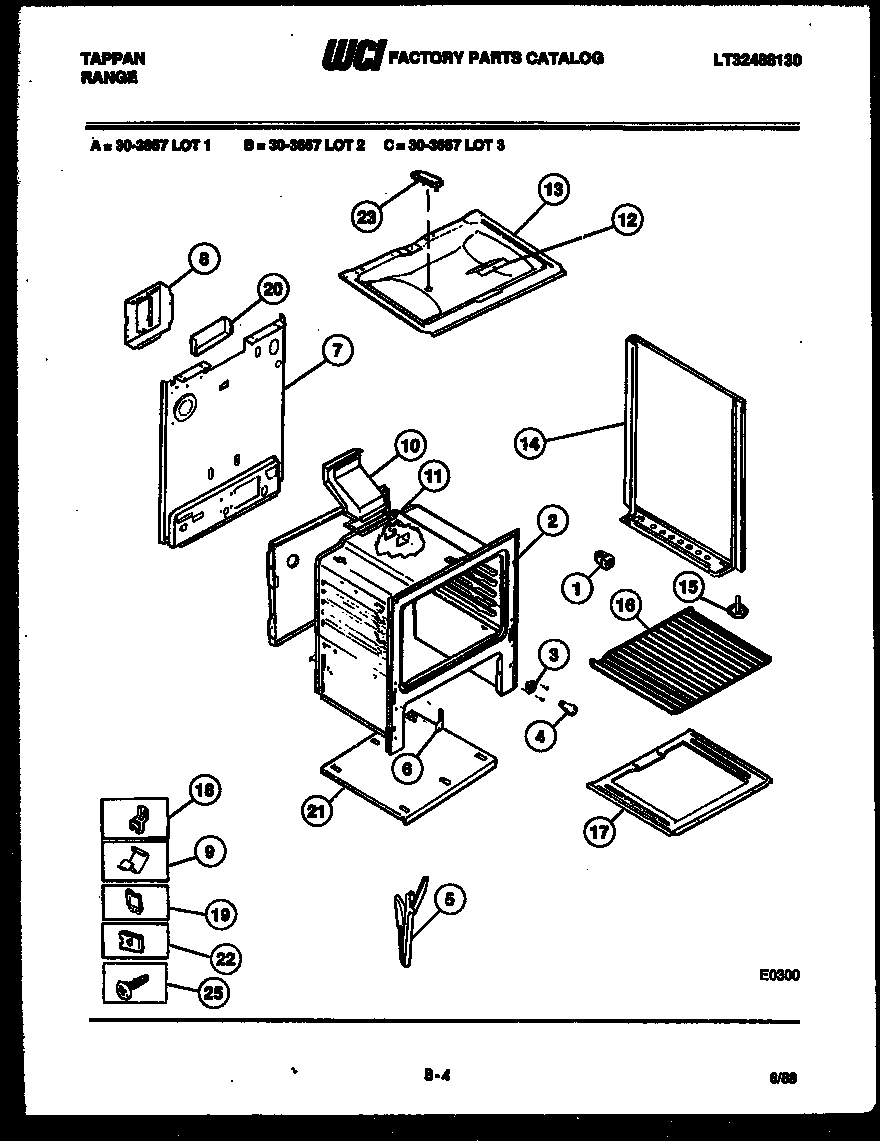

30-3657-23-02 06 – BODY PARTS

30-3657-23-02 06 – BODY PARTS

Written by

in

30-3657-23-02 06 – BODY PARTS

Products

PositionProduct
*13107FSTNR-POWER CORD (NON-ILLUSTRATED)
1WCI 665T188P02
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5CHANL-DR HNG (2)
6WCI 3131570
7WCI 3131567
8WCI 655T421F02-18
9CLIP, WIRE
10WCI 3131904
11316542102 Frigidaire Flue Gasket
12WCI 3131101
13WCI 095T030F02-86
14PNL. B/S (LH ALMOND)
14PNL. B/S (RH ALMOND)
15WCI 636M004P01
16316067902 Frigidaire Oven Rack
17AWCI 3131201
17WCI 058T036F02-86
17BWCI 3131246
185303284616 Frigidaire Range Bulb Clip Thermostat
18A5304534000 Frigidaire Cord
19316539800 Frigidaire Oven Retainer
20B316064600 Frigidaire Oven Support
20A3131903 Frigidaire Door/Drawer Bumper
20WCI 3131348
21WCI 3131180
21APLATE-OV. LT MTG (NON-ILLUSTRATED)
21BCOVER-POWER CORD, (NON-ILLUSTRATED)
223203010 Frigidaire Clip
23COVER, BURNER BOX
24COVER FRNT MAIN (NON-ILLUSTRATED)
25316282700 Frigidaire Oven Screw
