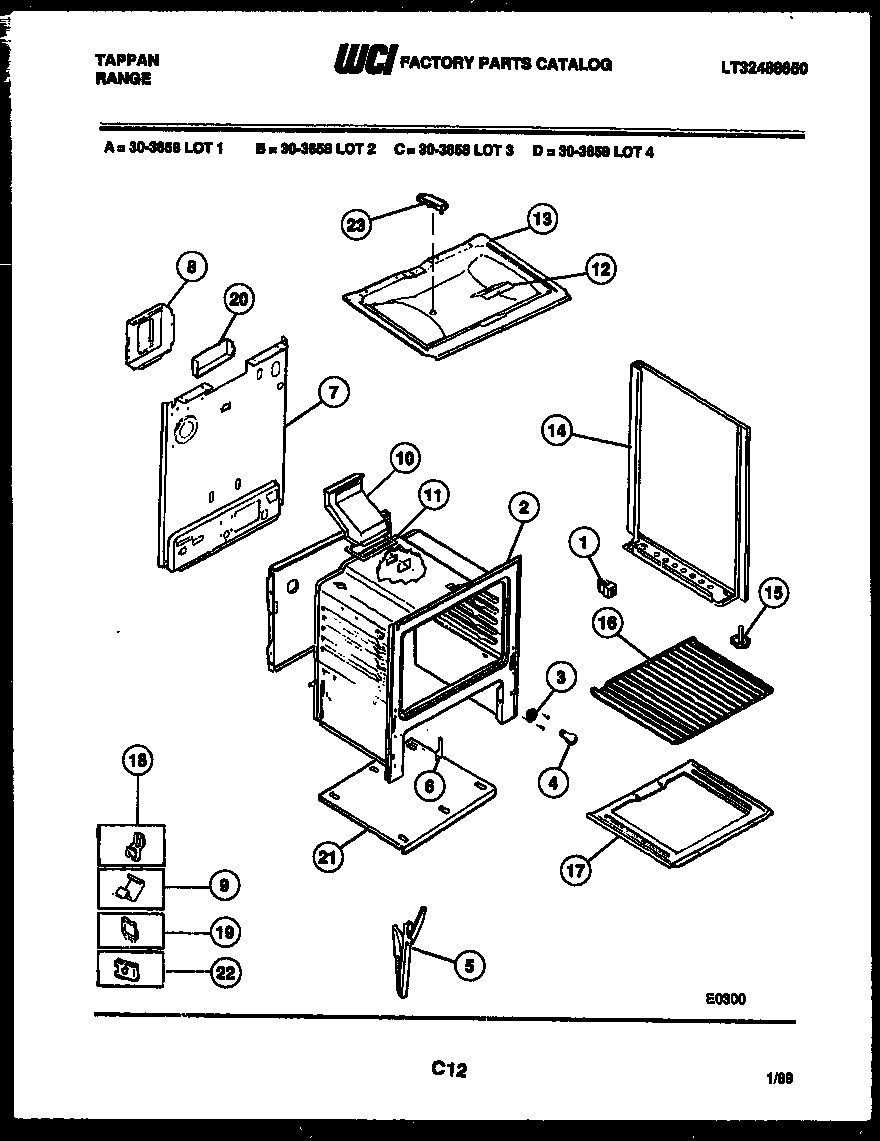

30-3658-00-02 07 – BODY PARTS

Products

Position	Product
*20560	FSTNR-POWER CORD (NON-ILLUSTRATED)
*20560	316282700 Frigidaire Oven Screw
1	WCI 665T188P02
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	CHANL-DR HNG (2)
6	WCI 3131570
7	WCI 3131567
8	WCI 655T421F02-18
9	CLIP, WIRE
10	WCI 3131904
11	316542102 Frigidaire Flue Gasket
12	WCI 3131101
13	WCI 095T030F02-86
14A	PNL. B/S (LH WHITE)
14	PNL. B/S (RH WHITE)
15	WCI 636M004P01
16	316067902 Frigidaire Oven Rack
17B	WCI 3131246
17	WCI 058T036F02-86
17A	WCI 3131201
18A	5304534000 Frigidaire Cord
18	5303284616 Frigidaire Range Bulb Clip Thermostat
19	316539800 Frigidaire Oven Retainer
20A	3131903 Frigidaire Door/Drawer Bumper
20B	316064600 Frigidaire Oven Support
20	WCI 3131348
21B	COVER-POWER CORD, (NON-ILLUSTRATED)
21	WCI 3131180
21A	PLATE-OV. LT MTG (NON-ILLUSTRATED)
22	3203010 Frigidaire Clip
23	WCI 3015371
24	COVER FRNT MAIN (NON-ILLUSTRATED)
