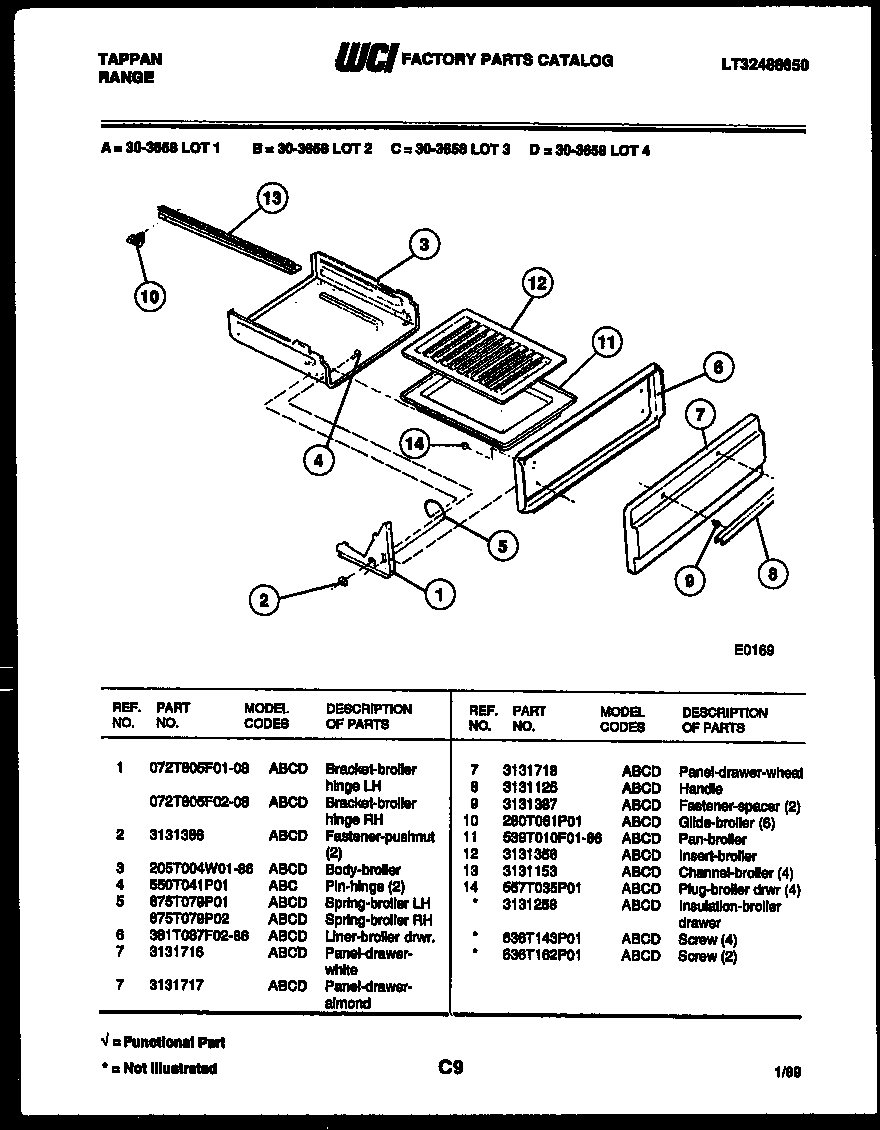

30-3658-00-03 05 – BROILER DRAWER PARTS

Products

Position	Product
*20553	5303300265 Frigidaire Oven Screw
*20553	INSUL, BRL, DRWR (NON-ILLUSTRATED)
*20553	SCREW PNL ASSY (2)
1	WCI 072T805F01-08
1A	WCI 072T805F02-08
2	WCI 3131386
3	BODY, BROILER
4	PIN, HINGE (2)
5A	SPRING-BROILR RH C-TYPE
5	SPRING-BROILR LH C-TYPE
6	LINER (BROILR DRWR)
7	PANEL BROILR-(WHITE)
8	WCI 3131125
9	FSTNR, SPACER (2)
10	GLIDE – BROILER
11	PAN, BROILER
12	WCI 3131356
13	WCI 3131153
14	WCI 557T035P01
