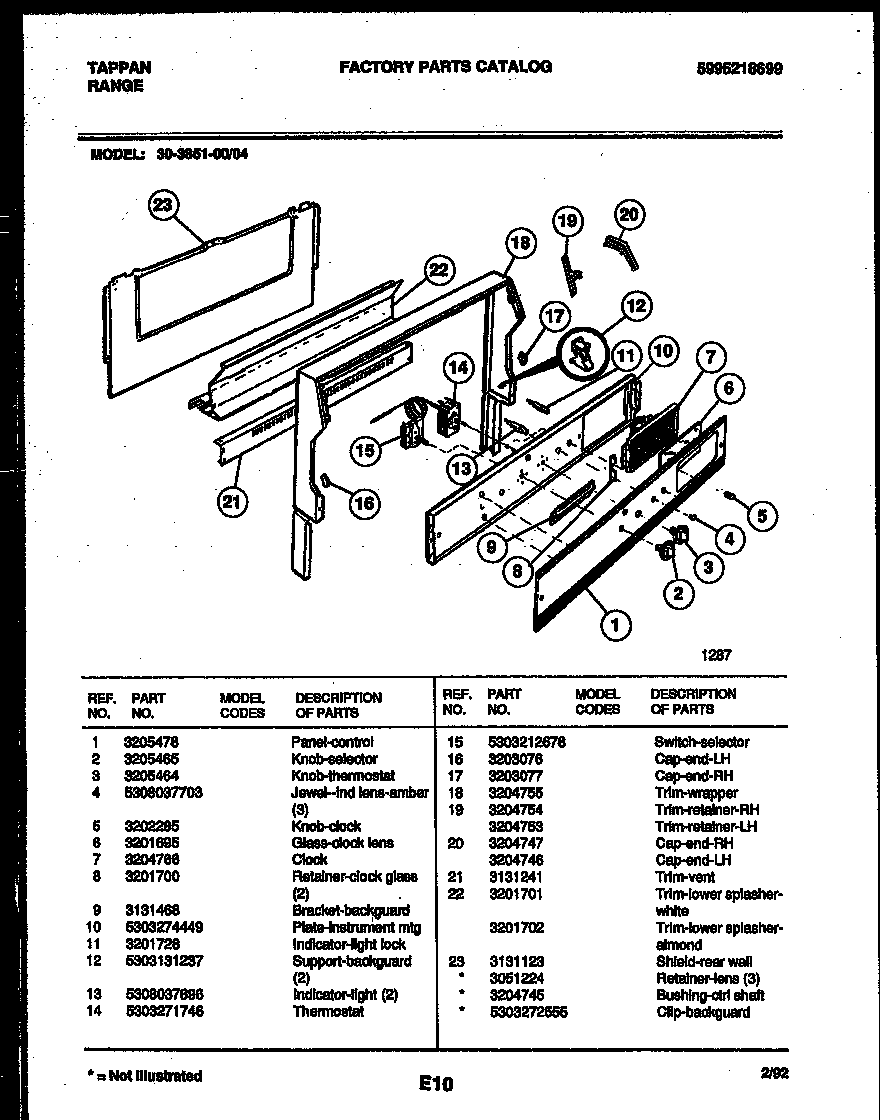

30-3851-00-04 02 – BACKGUARD – Aparts

30-3851-00-04 02 – BACKGUARD

Products

Position	Product
*64632	RETAINER-LENS
*64633	WCI 3204745
*64633	WCI 5303272555
1	PANEL, CONTROL, METAL
2	KNOB-SELECTOR SWITCH
3	WCI 3205464
4	JEWEL LENS-AMBER
5	KNOB-CLOCK
6	WCI 3201695
7	ELECTRICAL CLOCK
8	RETAINER, CLOCK GLASS, (2)
9	WCI 3131468
10	PLATE-INSTRUMENT
11	INDICATOR LIGHT-LOCK (1)
12	SUPPORT-BACKGUARD,(2)
13	WCI 5308037896
14	THERMOSTAT-BAKE
15	SWITCH SELECTOR 5 POS
16	CAP-LH
17	CAP-RH
18	WCI 3204755
19A	TRIM-GLASS RETAINER,LH
19	TRIM-GLASS RETAINER,RH
20A	WCI 3204746
20	WCI 3204747
21	WCI 3131241
22	TRIM-LOWER SPLASHER (WHITE)
23	SHIELD-BACKGUARD,REAR WALL
