30-3851-23-05 02 – BACKGUARD

30-3851-23-05 02 – BACKGUARD

Written by

in

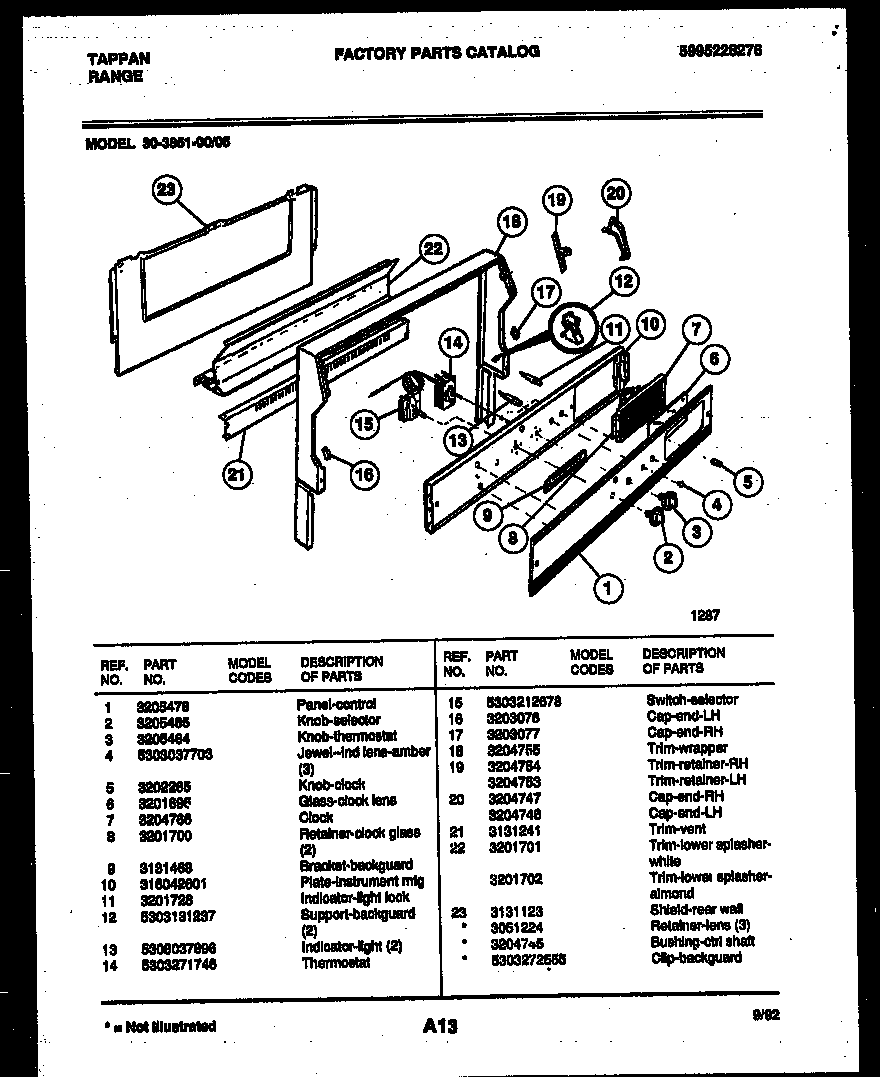

30-3851-23-05 02 – BACKGUARD

Products

PositionProduct
*79686RETAINER-LENS
*79686WCI 3204745
*79686WCI 5303272555
1PANEL, CONTROL, METAL
2KNOB-SELECTOR SWITCH
3WCI 3205464
4JEWEL LENS-AMBER
5KNOB-CLOCK
6WCI 3201695
7ELECTRICAL CLOCK
8RETAINER, CLOCK GLASS, (2)
9WCI 3131468
10WCI 316042601
11INDICATOR LIGHT-LOCK (1)
12SUPPORT-BACKGUARD,(2)
13WCI 5308037896
14THERMOSTAT-BAKE
15SWITCH SELECTOR 5 POS
16CAP-LH
17CAP-RH
18WCI 3204755
19TRIM-GLASS RETAINER,RH
19TRIM-GLASS RETAINER,LH
20WCI 3204746
20WCI 3204747
21WCI 3131241
22TRIM-LWR SPLSHR (ALMD)
23SHIELD-BACKGUARD,REAR WALL
