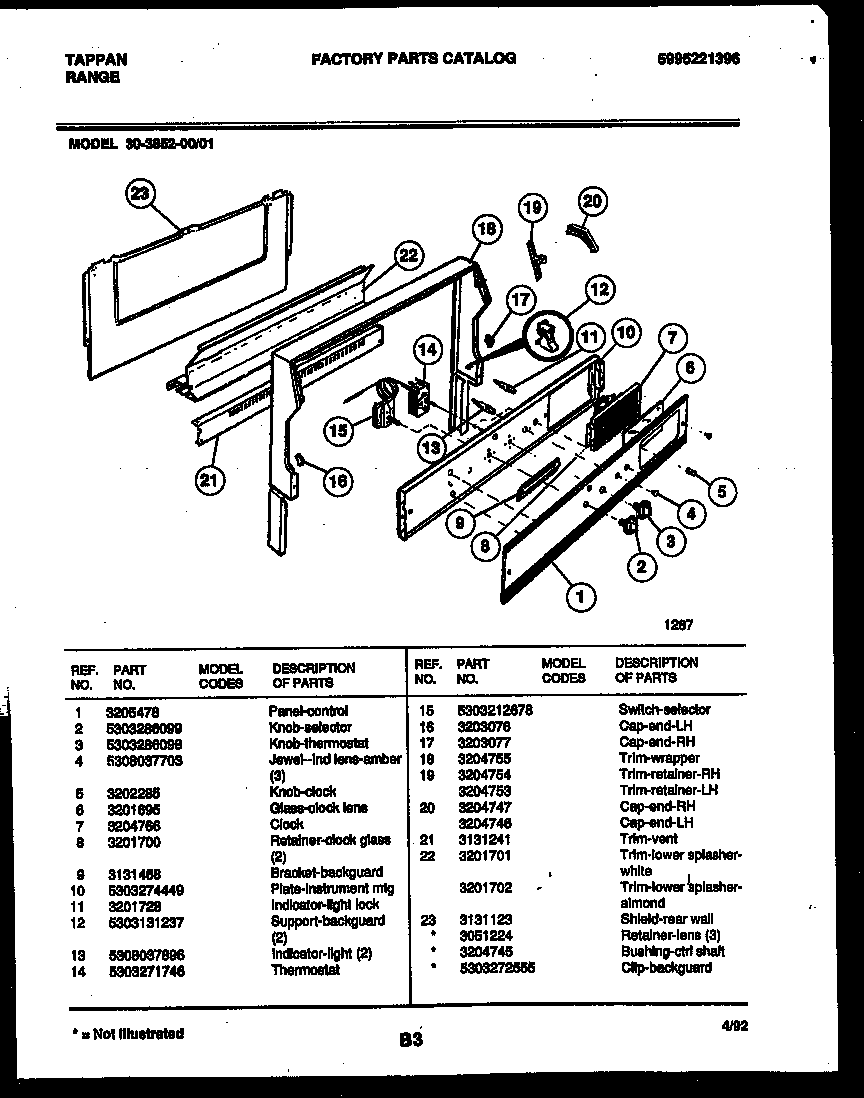

30-3852-00-01 02 – BACKGUARD – Aparts

30-3852-00-01 02 – BACKGUARD

Products

Position	Product
*70791	RETAINER-LENS
*70791	WCI 3204745
*70792	WCI 5303272555
1	PANEL, CONTROL, METAL
2	WCI 5303286099
3	WCI 5303286098
4	JEWEL LENS-AMBER
5	KNOB-CLOCK
6	WCI 3201695
7	ELECTRICAL CLOCK
8	RETAINER, CLOCK GLASS, (2)
9	WCI 3131468
10	PLATE-INSTRUMENT
11	INDICATOR LIGHT-LOCK (1)
12	SUPPORT-BACKGUARD,(2)
13	WCI 5308037896
14	THERMOSTAT-BAKE
15	SWITCH SELECTOR 5 POS
16	CAP-LH
17	CAP-RH
18	WCI 3204755
19	TRIM-GLASS RETAINER,RH
19A	TRIM-GLASS RETAINER,LH
20	WCI 3204747
20A	WCI 3204746
21	WCI 3131241
22	TRIM-LOWER SPLASHER (WHITE)
23	SHIELD-BACKGUARD,REAR WALL
