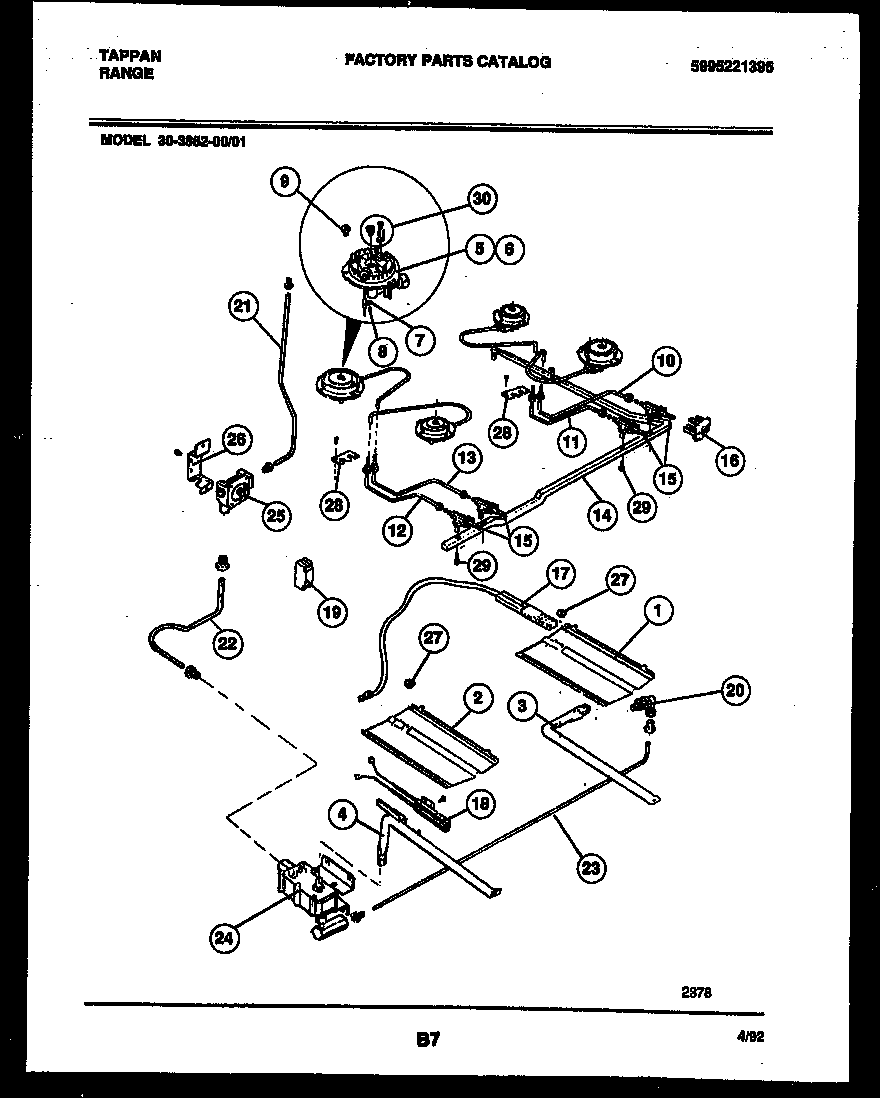

30-3852-00-01 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
1	WCI 5303210379
2	BAFFLE-OVN BURNER
3	WCI 08067935
4	WCI 3131290
5	WCI 316010600
6	WCI 316010700
7	316011200 Frigidaire Oven Top Burner Igniter
8	WCI 316011100
9	ORIFICE-TOP BURNER, (4)
10	BURNER TUBE-RF
11	BURNER TUBE-RR
12	316059613 Frigidaire Oven Tube-LF
13	316059615 Frigidaire Oven Tube
14	WCI 5303271375
15	WCI 316020400
16	SWITCH-IGNITER, (4)
17	5303935068 Frigidaire Flat Igniter
18	5303935066 Frigidaire Oven Flat Igniter 17" Leads
19	5304505695 Frigidaire Oven Module
20	WCI 5303208640
21	TUBE-ALUM 3/8 REG/MANIFOLD PIPE
22	TUBE-VALVE TO REGUL
23	TUBE-VALVE TO MIXER ELBOW
24	5303208499 Frigidaire Safety Gas Valve
25	5303935125 Frigidaire Pressure Regulator
26	316091600 Frigidaire Oven Bracket
27	5303013272 Frigidaire Oven Nut
28	WCI 5303269491
29	316048200 Frigidaire Oven Screw
30	WCI 5303286386
