30-3852-00-02 02 – BACKGUARD

30-3852-00-02 02 – BACKGUARD

Written by

in

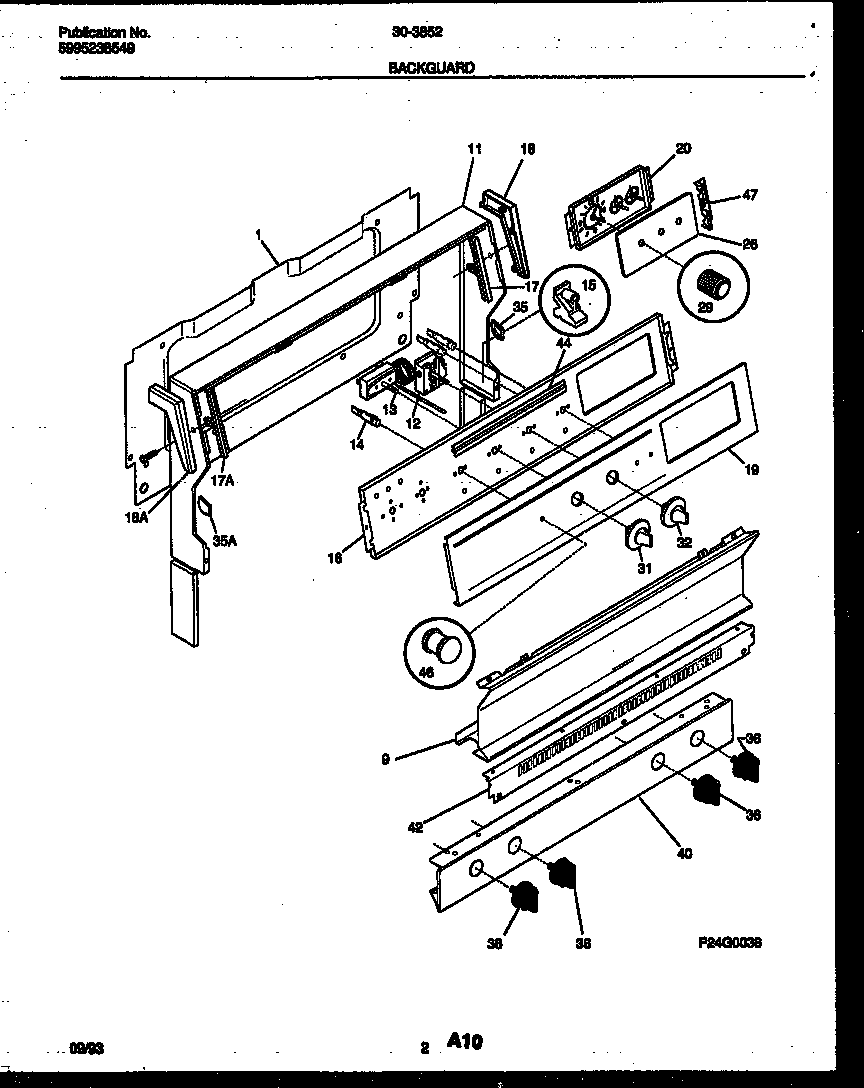

30-3852-00-02 02 – BACKGUARD

Products

PositionProduct
*89911RETAINER-LENS
*89911WCI 3204745
*89911WCI 5303272555
1SHIELD-BACKGUARD,REAR WALL
9WCI 316043501
11WCI 3204755
12THERMOSTAT-BAKE
13SWITCH SELECTOR 5 POS
14AINDICATOR LIGHT-LOCK (1)
14WCI 5308037896
15SUPPORT-BACKGUARD,(2)
16WCI 316042601
17TRIM-GLASS RETAINER,RH
17ATRIM-GLASS RETAINER,LH
18WCI 3204747
18AWCI 3204746
19PANEL, CONTROL, METAL
20ELECTRICAL CLOCK
26WCI 3201695
29KNOB-CLOCK
31WCI 5303286099
32WCI 5303286098
35CAP-RH
35ACAP-LH
36KNOB-TOP VALVE, (4)
40WCI 316009242
42WCI 3131241
44WCI 3131468
46JEWEL LENS-AMBER
47RETAINER, CLOCK GLASS, (2)
