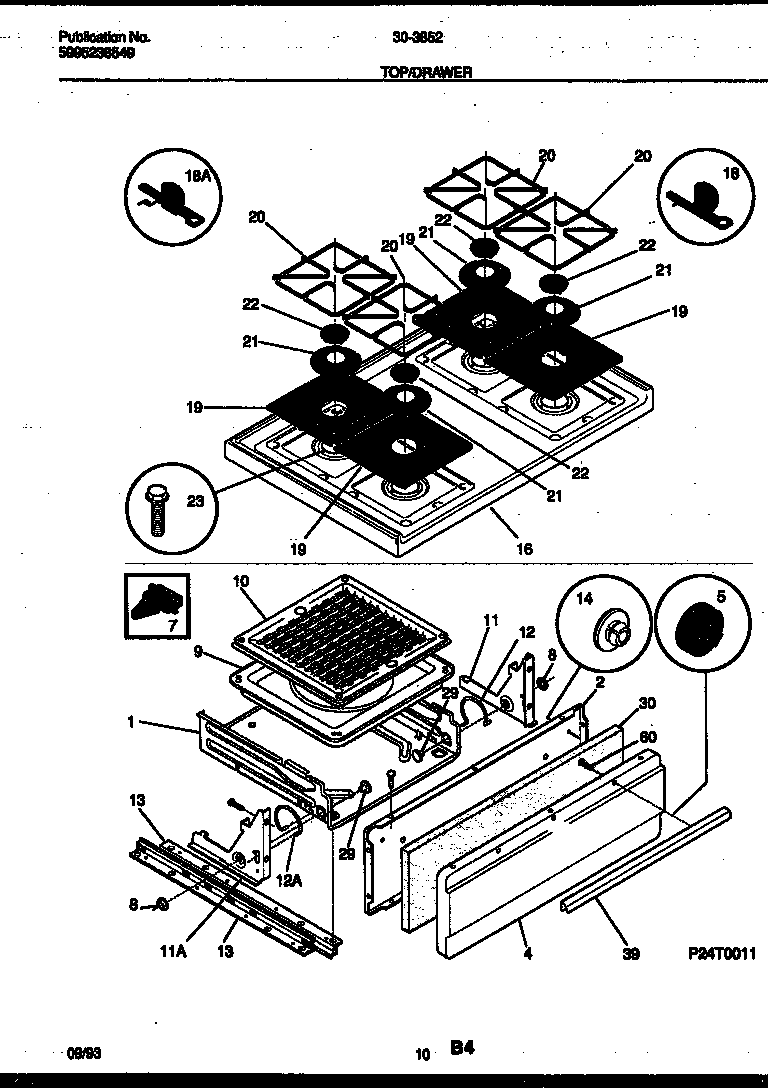

30-3852-00-02 06 – COOKTOP AND BROILER DRAWER PARTS

Products

PositionProduct
1DRAWER-UTILITY
2SHIELD-PNL
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4PNL-DRAWER (WHTE)
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
8WCI 3131386
16WCI 316010401
16BGUSSET-MTG (LH) (NON-ILLUSTRATED)
16AGUSSET-MTG (RH) (NON-ILLUSTRATED)
18BRACKET-HINGE,MAIN TOP RH
18ABRACKET-HINGE,MAIN TOP LH
18B131243700 Frigidaire Screw
19WCI 316011400
20WCI 5303269632
21WCI 316035101
22316010901 Frigidaire Burner Cap P1
23316069301 Frigidaire Oven Burner Mounting Primary Screw
29PIN, HINGE (2)
39HANDLE-DRAWER, BRUSHED CHROME
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
