30-3852-00-04 06 – TOP/DRAWER

30-3852-00-04 06 – TOP/DRAWER

Written by

in

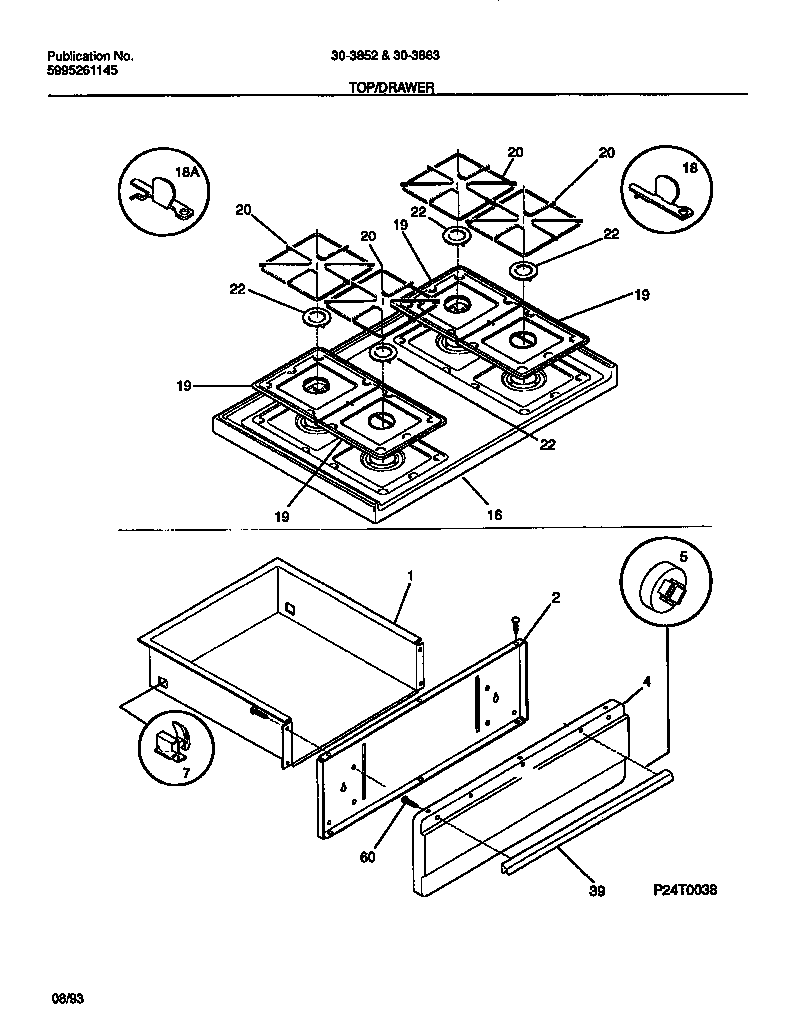

30-3852-00-04 06 – TOP/DRAWER

Products

PositionProduct
*83246WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4PANEL-BROILER, WHITE
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16WCI 316010408
16GUSSET-MTG (LH) (NON-ILLUSTRATED)
16GUSSET-MTG (RH) (NON-ILLUSTRATED)
18131243700 Frigidaire Screw
18ABRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
19WCI 316011401
20WCI 5303269632
22316010901 Frigidaire Burner Cap P1
39HANDLE-DRAWER, BRUSHED CHROME
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
