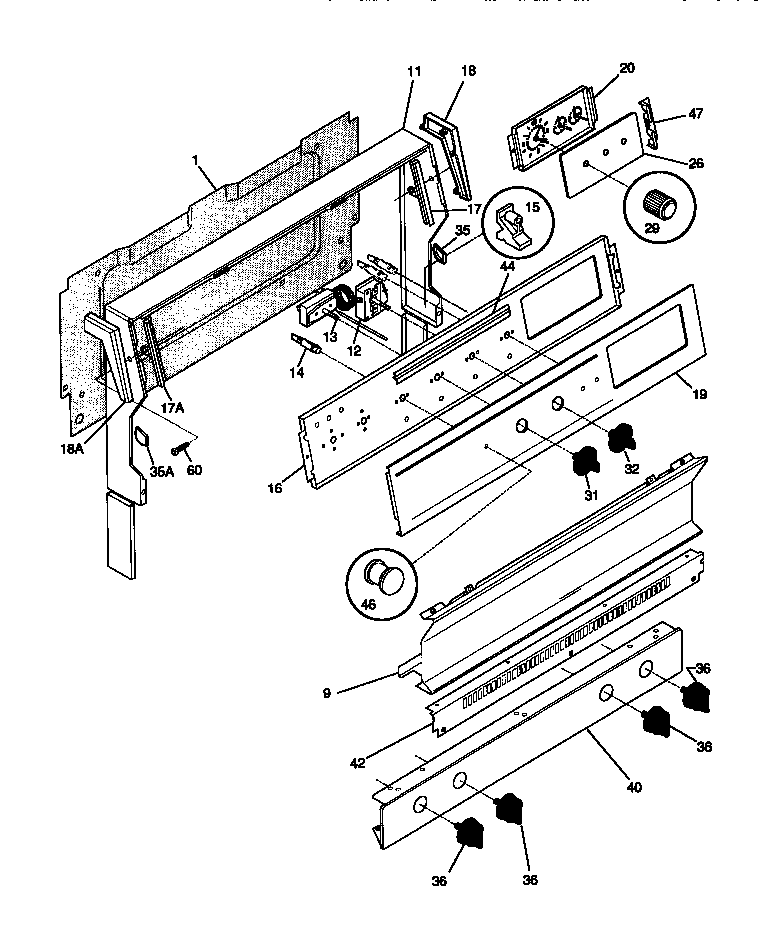

30-3852-00-05 02 – BACKGUARD

30-3852-00-05 02 – BACKGUARD

Written by

in

30-3852-00-05 02 – BACKGUARD

Products

PositionProduct
*74244316021105 Frigidaire Oven Screw
*74243WCI 5303281584
*74240WCI 3204745
*74242WCI 5303272555
*74241WCI 316001422
1SHIELD-BACKGUARD,REAR WALL
9WCI 316043501
11WCI 3204755
12THERMOSTAT-BAKE
13SWITCH SELECTOR 5 POS
14WCI 5308037896
14AINDICATOR LIGHT-LOCK (1)
15SUPPORT-BACKGUARD,(2)
16WCI 316042601
17TRIM-GLASS RETAINER,RH
17ATRIM-GLASS RETAINER,LH
18WCI 3204747
18AWCI 3204746
19PANEL, CONTROL, METAL
20ELECTRICAL CLOCK
26WCI 3201695
29WCI 316029000
31WCI 5303286099
32WCI 5303286098
35CAP-RH
35ACAP-LH
36WCI 316023014
40WCI 316009242
42WCI 316084300
44WCI 3131468
46WCI 316065800
47RETAINER, CLOCK GLASS, (2)
60SCREW-END CAP
