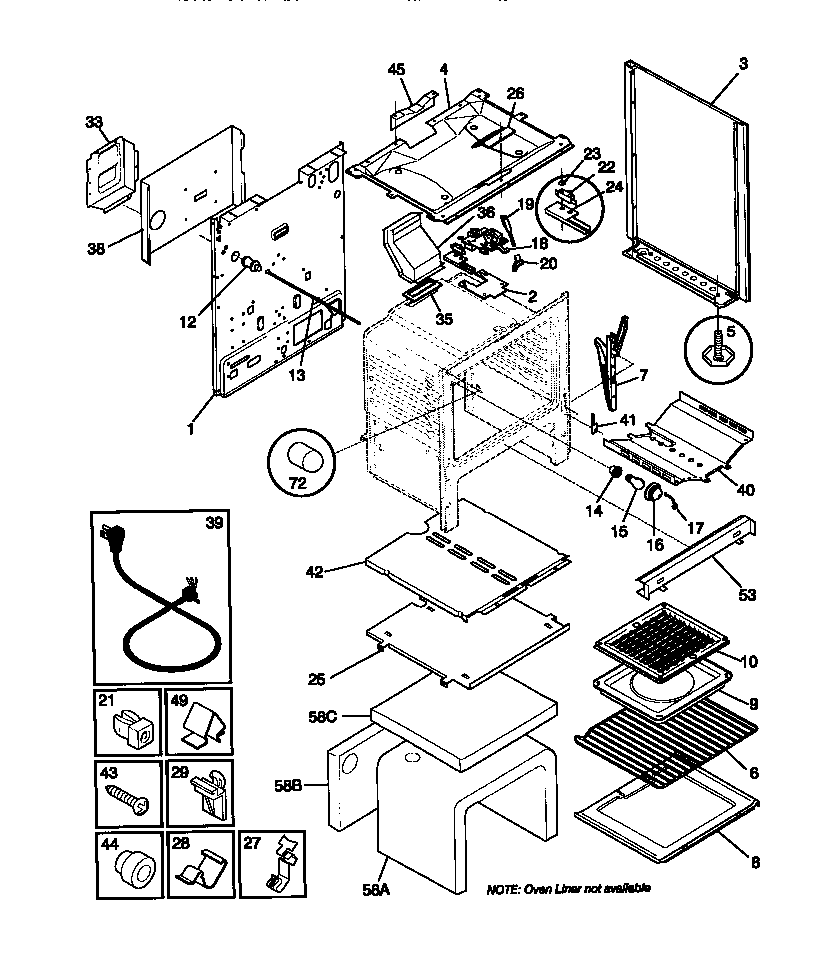

30-3852-00-05 04 – BODY

30-3852-00-05 04 – BODY

Written by

in

30-3852-00-05 04 – BODY

Products

PositionProduct
*74247HARNESS-WIRING, MAIN
*74246SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*74245WCI 5303281584
1WCI 316029410
2SHIELD-OVN TOP
3AWCI 316081005
3BSHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3CFASTENER-EDGE MTG (NOT ILLUSTRATED)
3DWCI 08067992
3WCI 316081004
4WCI 316011912
5SCREW-LEVELING
5AWCI 3934058
5B316116000 Frigidaire Screw
5CNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7A3203010 Frigidaire Clip
7Hinge,oven door ,(2)
8BTTM-OVEN
8A316064600 Frigidaire Oven Support
9WCI 316073800
10WCI 3205234
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 5303015453
18ASHIELD-LATCH (NON-ILLUSTRATED)
19WCI 5303131357
20WCI 3203218
20AWCI 08013188
21SPACER-BODYSIDE, (8)
22ASTUD SPACER (2) (NON-ILLUSTRATED)
22SWITCH-LATCH
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3131313
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 3131931
38WCI 316014301
39AWCI 08067961
395304515659 Frigidaire Oven Power Cord
40WCI 3200836
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
493205821 Frigidaire Clip
53SHIELD-FRONT
53A08067973 Frigidaire 0 Insulation
58AINSULATION, OVEN WRAPPER
58CINSULATION, OVEN TOP
58BWCI 316054200
72COVER-LIGHT/SWITCH ROD
