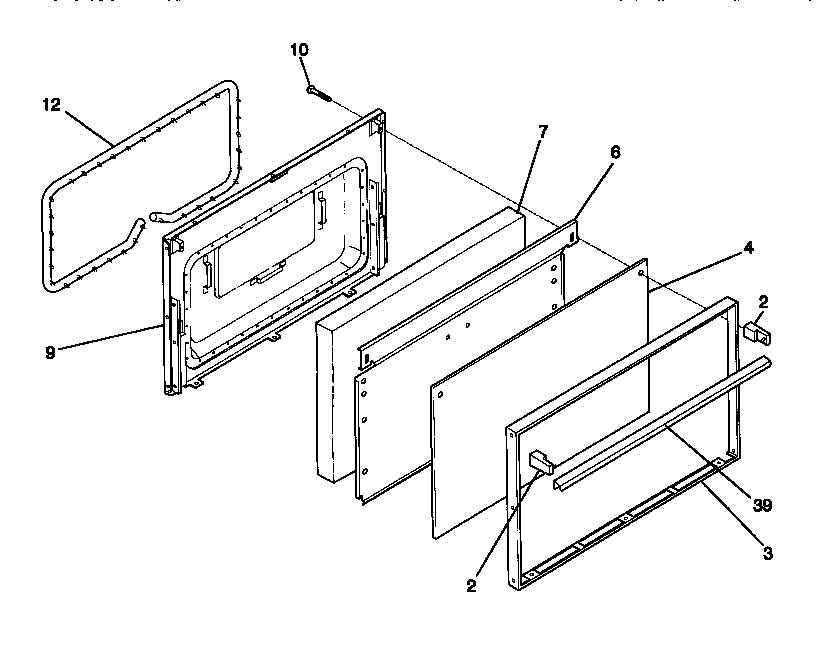

30-3852-00-05 06 – DOOR

30-3852-00-05 06 – DOOR

Written by

in

30-3852-00-05 06 – DOOR

Products

PositionProduct
*74251WCI 316065300
*74256WCI 5303280311
*74258131243700 Frigidaire Screw
*742555303271648 Frigidaire Oven Screw
*742575303285179 Frigidaire Oven Door Screw
*742535303300265 Frigidaire Oven Screw
*74254WCI 5303269859
*74252SCREW, CR PAN HD SEMS, 8-32BP X 1.00
3WCI 316067802
4GLASS-FRONT-BLACK
6WCI 5303209317
7WCI 316076400
9WCI 316066602
10SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
125303131601 Frigidaire Oven Seal
39HANDLE-DOOR, OVEN
49316137003 Frigidaire Range / Cooktop End Cap
