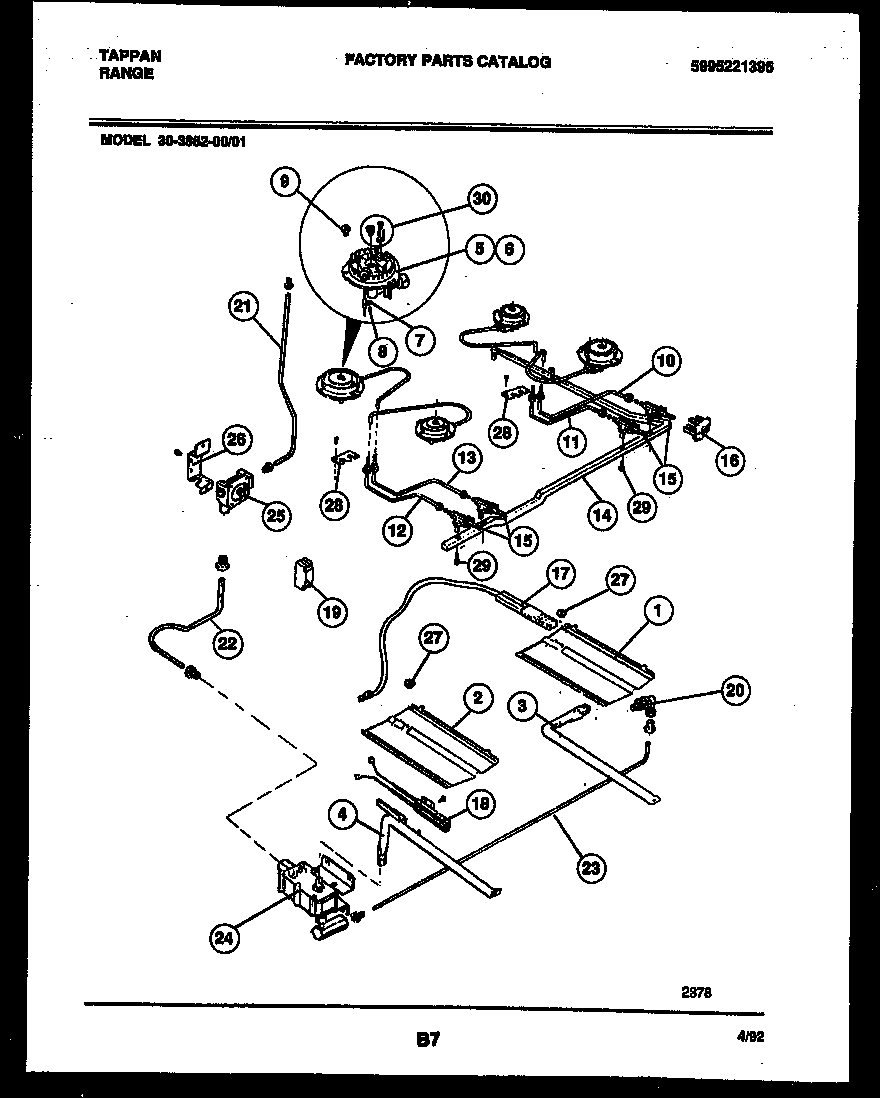

30-3852-23-01 06 – BURNER, MANIFOLD AND GAS CONTROL

30-3852-23-01 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

30-3852-23-01 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 5303210379
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
5WCI 316010600
6WCI 316010700
7316011200 Frigidaire Oven Top Burner Igniter
8WCI 316011100
9ORIFICE-TOP BURNER, (4)
10BURNER TUBE-RF
11BURNER TUBE-RR
12316059613 Frigidaire Oven Tube-LF
13316059615 Frigidaire Oven Tube
14WCI 5303271375
15WCI 316020400
16SWITCH-IGNITER, (4)
175303935068 Frigidaire Flat Igniter
185303935066 Frigidaire Oven Flat Igniter 17" Leads
195304505695 Frigidaire Oven Module
20WCI 5303208640
21TUBE-ALUM 3/8 REG/MANIFOLD PIPE
22TUBE-VALVE TO REGUL
23TUBE-VALVE TO MIXER ELBOW
245303208499 Frigidaire Safety Gas Valve
255303935125 Frigidaire Pressure Regulator
26316091600 Frigidaire Oven Bracket
275303013272 Frigidaire Oven Nut
28WCI 5303269491
29316048200 Frigidaire Oven Screw
30WCI 5303286386
