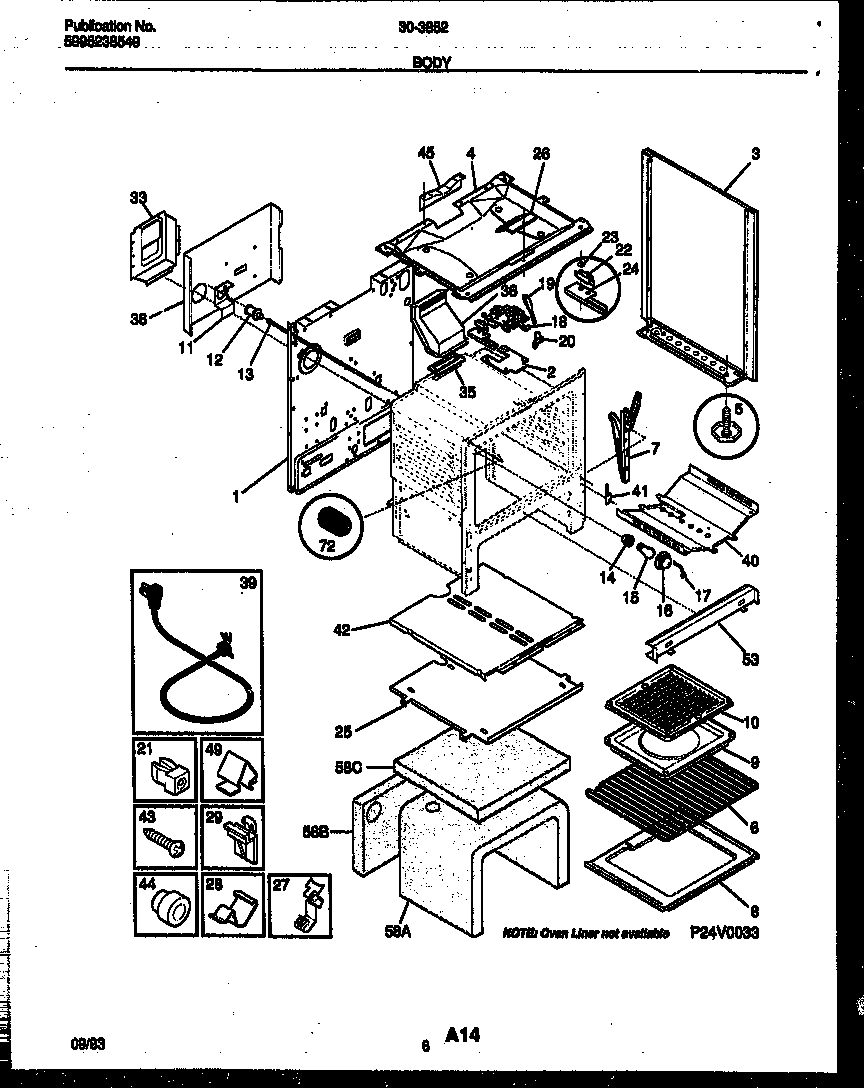

30-3852-23-02 04 – BODY PARTS

Products

Position	Product
1	WCI 3203082
2	SHIELD-OVN TOP
3A	WCI 5303269545
3B	WCI 08067992
3	WCI 5303269543
4	WCI 5303269487
5B	ANTI-TIP KIT (NOT ILLUSTRATED)
5A	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5	SCREW-LEVELING
6	316067902 Frigidaire Oven Rack
7	Hinge,oven door ,(2)
8	BTTM-OVEN
8A	316064600 Frigidaire Oven Support
9	PAN-BROILER
10	WCI 5303131356
11	WCI 5303131289
12	SWITCH-OVEN LITE DOOR
13	WCI 5303269501
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	RETAINER-GLASS
18A	SHIELD-LATCH (NON-ILLUSTRATED)
18	WCI 5303015453
19	WCI 5303131357
20A	WCI 08013188
20	WCI 3203218
21	SPACER-BODYSIDE, (8)
22A	STUD SPACER (2) (NON-ILLUSTRATED)
22	SWITCH-LATCH
23	FSTNR-PUSH ON
24	SHIELD-LATCH
25	WCI 3131313
26	WCI 08067757
27	5303284616 Frigidaire Range Bulb Clip Thermostat
28	CLIP-WIRE
29	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
33	SHIELD, REAR WALL
35	316542102 Frigidaire Flue Gasket
36	WCI 3131931
38	WCI 316014301
39	5304515659 Frigidaire Oven Power Cord
40	WCI 3200836
41	WCI 3131570
42	SHIELD-HEAT UPPER
