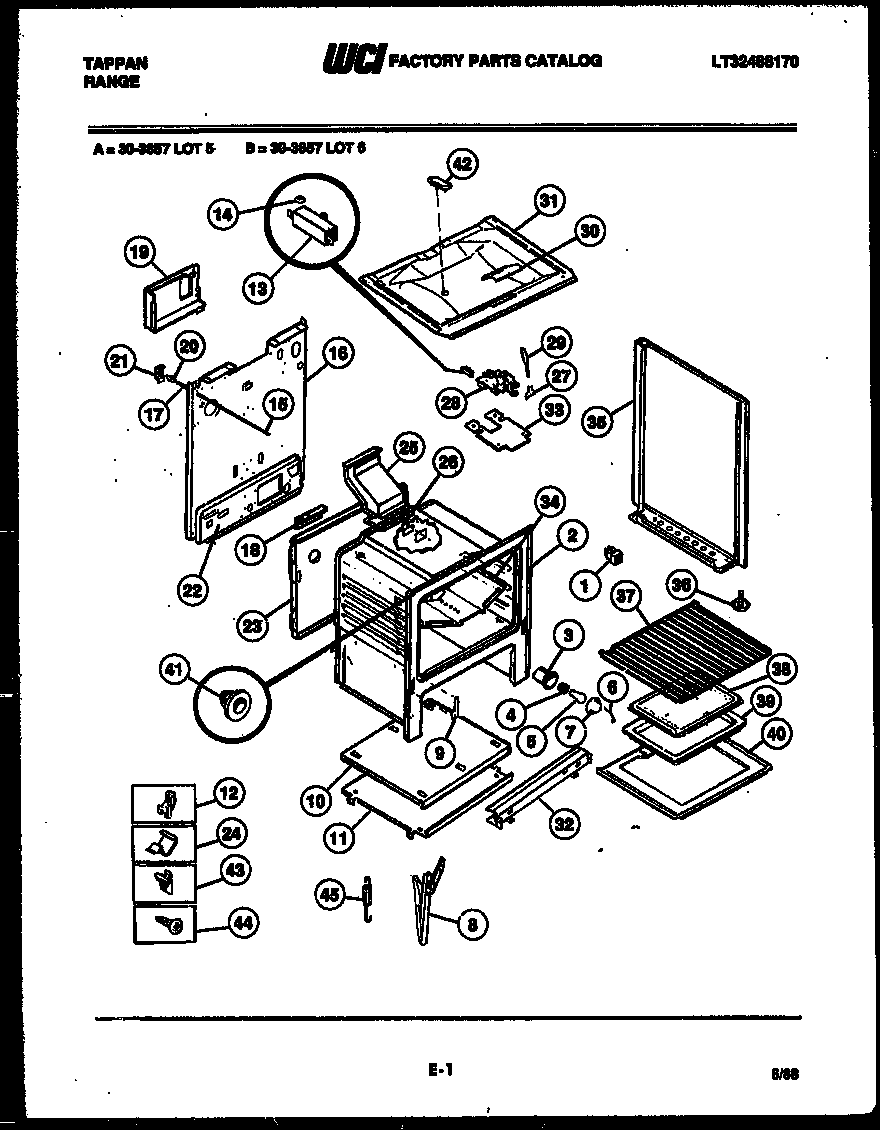

30-3857-23-05 06 – BODY PARTS

Products

Position	Product
*13442	ALUM-FOIL-MUST BE USED WHEN REPLACING BODYSIDE
1	WCI 665T188P02
3	WCI 3131363
4	316116400 Frigidaire Oven Light Socket
5	316538904 Frigidaire Oven Lamp Light
6	WCI 3131104
7	WCI 3131298
8	CHANL-DR HNG (2)
9	WCI 3131570
10	WCI 3131312
11	WCI 3131313
12	CLIP-TUBING (2)
13	WCI 3131672
14	WCI 241T001P01
14A	STUD, SPACER (2) (NON-ILLUSTRATED)
15	WCI 174T329P01
15A	5304534000 Frigidaire Cord
16	WCI 3131567
17	ROD-LIGHT SWITCH
18	ANGLE LIGHT SWITCH
19	CHANNEL-LIGHT SHLD
20	SWITCH-OVEN LITE DOOR
21	BRKT LIGHT SWITCH
22	WCI 3131590
23	WCI 3131316
24	CLIP, WIRE
25	WCI 3131931
26B	SCREW-SET KNOB MTG (NON-ILLUSTRATED)
26A	SHIELD-LATCH (NON-ILLUSTRATED)
26	316542102 Frigidaire Flue Gasket
27B	WCI 655T437F01
27A	WASHER-BLACK
27	WCI 358T158S02
28	WCI 368T027P01
29	WCI 3131357
30	WCI 3131101
31	WCI 095T030F02-86
32	SHIELD-FRONT
33	SHIELD-OVN TOP
34	WCI 3131315
35A	PNL. B/S (LH ALMOND)
35	PNL. B/S (RH ALMOND)
36	WCI 636M004P01
37	316067902 Frigidaire Oven Rack
38	WCI 3131356
39	PAN, BROILER
40	WCI 058T036F01-86
40B	3131903 Frigidaire Door/Drawer Bumper
40A	WCI 695T092F01
41	BUTTON-REMOTE SW
41D	INSULATION, OVEN TOP
41F	WCI 3131305
41H	SHIELD-LATCH
41E	WCI 655T434F01
41C	08067973 Frigidaire 0 Insulation
41A	FSTNR-POWER CORD (NON-ILLUSTRATED)
41B	INSUL OVEN BACK (NON-ILLUSTRATED)
42	WCI 3015371
43	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
44	316282700 Frigidaire Oven Screw
